| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

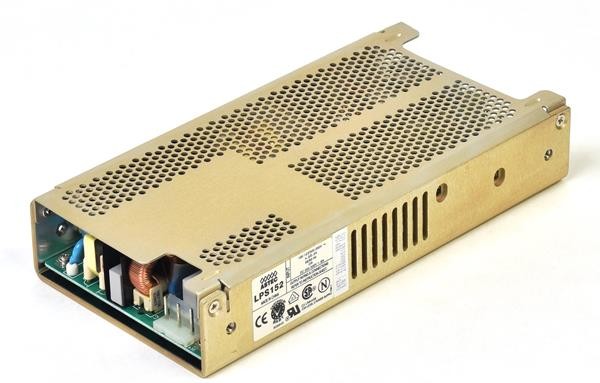

The Artesyn Embedded Power LPS152 is a 110W single output AC DC switching power supply designed for industrial applications. It offers an auto-ranging input voltage of 85-264 VAC and a DC input capability of 220-300 VDC, providing flexibility for various power environments.
Key electrical specifications include a 5V output at 22A or a 12V output at 9.1A, with a typical efficiency of 75%. The unit supports remote sense for voltage drop compensation and remote inhibit for external enable/disable control. It also includes short-circuit protection on all outputs and overvoltage protection on the main output.
Physically, the LPS152 measures 216.0mm L x 108.0mm W x 38.1mm H and is designed for chassis mounting with an enclosed form factor. The operating temperature range is 0°C to 70°C with derating. This power supply meets EMI filtering standards including FCC Class B and CISPR 22 Class B.
Typical applications include industrial control systems, instrumentation, telecommunications equipment, and embedded computing platforms where space constraints and power efficiency are critical. It is certified to CB, CE, VDE 0805/EN60950, UL1950, and CSA 22.2-234 Level 3 standards.
0°C to 70°C with derating.
85-132 VAC or 170-264 VAC (auto-selectable) and 220-300 VDC.
5V @ 22A or 12V @ 9.1A.
110W (150W forced air).
75%.
Chassis Mount, enclosed.
216.0mm x 108.0mm x 38.1mm.
