| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

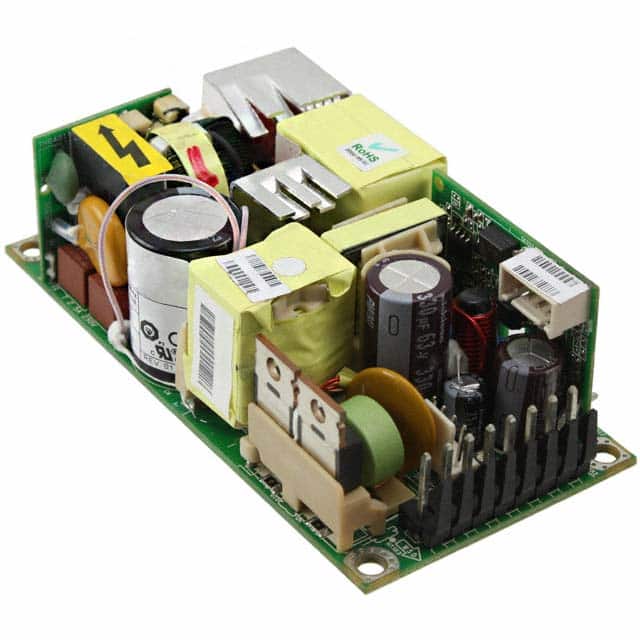

The Artesyn Embedded Power LPS109-M is a versatile AC DC converter designed for ITE (Commercial) and Medical applications. It delivers up to 100W of power, with a higher 150W rating available under forced air cooling.
This converter features an open frame construction and chassis mount for easy integration into systems. Key electrical specifications include a universal input, adjustable output, DC input capability, Power Factor Correction (PFC), remote sense, and a standby output. It operates within a temperature range of 0°C to 70°C with derating.
Mechanical dimensions are 101.6mm in length, 50.8mm in width, and 32.8mm in height. The unit provides an isolation voltage of 4 kV and is certified by CB, CE, and CQC, indicating compliance with various safety and quality standards.
The LPS109-M provides 100W of output power, with a 150W rating available under forced air.
The LPS109-M uses chassis mount.
The dimensions are 101.6mm in length, 50.8mm in width, and 32.8mm in height.
The operating temperature range is 0°C to 70°C with derating.
The LPS109-M is certified by CB, CE, and CQC.
