LPR-02B-16R
OptiFuse
In-line blade fuse holder for ATC/ATO fuses. Rated 15A, 125VDC/250VAC with 16 AWG wire leads.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Contact Material | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Temperature Rating | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Type |

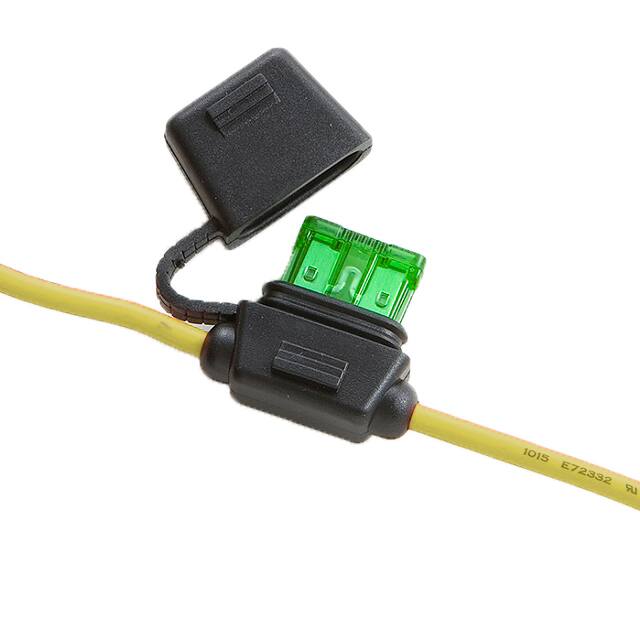

The OptiFuse LPR-02B-16Y is an in-line blade fuse holder designed for use with ATC and ATO style blade fuses. It features a free hanging (in-line) mounting style with 16 AWG UL 1015 stranded wire leads, each 4 inches long, terminated with brass contacts. The holder is rated for 15A continuous current and has a voltage rating of 125VDC or 250VAC.
This fuse holder is built with a PVC body rated UL94V-0 for flame resistance and offers an IP67 ingress protection rating, making it suitable for environments where dust and temporary water immersion may occur. The operating temperature range is -40°C to 85°C.
The LPR-02B-16Y is supplied in bulk packaging with yellow wire color indicating the 16 AWG wire gauge. It is RoHS3 compliant and REACH unaffected, though these compliance claims are unverified.
The LPR-02B-16Y is rated for 15A continuous current.
The voltage rating is 125VDC or 250VAC.
It accepts ATC and ATO style regular blade fuses.
The LPR-02B-16Y has an IP67 ingress protection rating.
The operating temperature range is -40°C to 85°C.
The fuse holder has 16 AWG wire leads, each 4 inches long.
