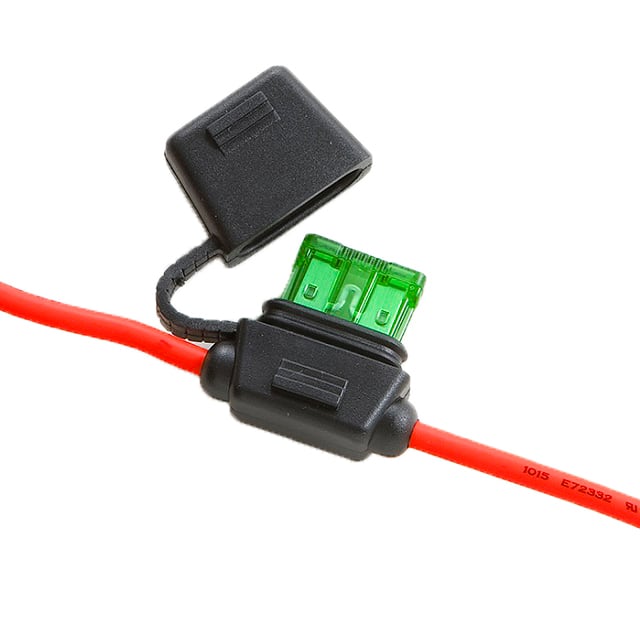

LPR-02B-16R In-line blade fuse holder for ATC/ATO fuses. Rated 15A, 125VDC/250VAC with 16 AWG wire leads.
Mfr Part #:

LPR-02B-16R

Available from 1 distributors
Mfr Name: OptiFuse
OptiFuse
In-line blade fuse holder for ATC/ATO fuses. Rated 15A, 125VDC/250VAC with 16 AWG wire leads.
✓ Total Stock: 800 pcs

LPR-02B-16R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
NTD Electronics ✓
Non-Authorised Inventory information
800 pcs
On Request
800 pcs On Request 1 15 On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LPR-02B-16R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Color
Contact Material
Current Rating (Amps)
For Use With
Fuse Size
Fuse Type
Fuseholder Type
Ingress Protection
Lead Style
Mounting Type
Number of Circuits
Temperature Rating
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Type
View Similar Products (0)

LPR-02B-16R Description

Short technical summary and product information.

The OptiFuse LPR-02B-16R is an in-line regular (ATO/ATC style) blade fuse holder designed for free hanging (in-line) mounting. It accommodates ATC and ATO blade fuses with a fuse size of 0.75" L x 0.2" W (19.1mm x 5.1mm). The holder is rated for 15A continuous current and has a voltage rating of 125VDC and 250VAC.



Termination is via 16 AWG UL 1015 stranded wire leads, each 4 inches long, with FT1 (VW1) flame rating. The body is made of PVC (UL94V-0) in red, and the contact material is brass. The holder offers IP67 ingress protection and operates over a temperature range of -40°C to 85°C.



This fuse holder is suitable for automotive, marine, and industrial applications requiring reliable overcurrent protection in harsh environments. The IP67 rating ensures dust-tight and water-resistant performance. The 16 AWG wire gauge is appropriate for 15A circuits.

LPR-02B-16R Quick Information

Product Type: Fuseholder
Series: LPR-02B
Canonical Name: OptiFuse LPR-02B-16R In-Line Regular (ATO/ATC Style) Blade Fuse Holder, 15A, 125VDC/250VAC, 16 AWG, Red
Subcategory: In-Line Fuseholder

LPR-02B-16R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LPR-02B-16R Features

  • In-line blade fuse holder for ATC/ATO fuses.
  • Rated for 15A continuous current.
  • Rated 125VDC and 250VAC.
  • IP67 rated for dust and water ingress.
  • Wire leads with 16 AWG, 4 inches each.

LPR-02B-16R Applications

  • Ideal for automotive and marine fuse protection.
  • Used in in-line power distribution systems.
  • Suitable for harsh environments requiring IP67 rating.
  • For use with ATC/ATO blade fuses.

LPR-02B-16R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of this fuse holder?

The LPR-02B-16R is rated for 15 A.

What voltage rating does this fuse holder support?

It is rated for 125 VDC and 250 VAC.

What type of fuse does this holder accept?

It accepts ATC and ATO style blade fuses of size 0.75" L x 0.2" W (19.1mm x 5.1mm).

What is the mounting style of this fuse holder?

It is a free hanging (in-line) mounting type.

What is the IP rating of this fuse holder?

It has an IP67 ingress protection rating.

What is the operating temperature range?

It operates from -40°C to 85°C.

What wire gauge and length are used?

The wire leads are 16 AWG, stranded, and each is 4 inches long.
