| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

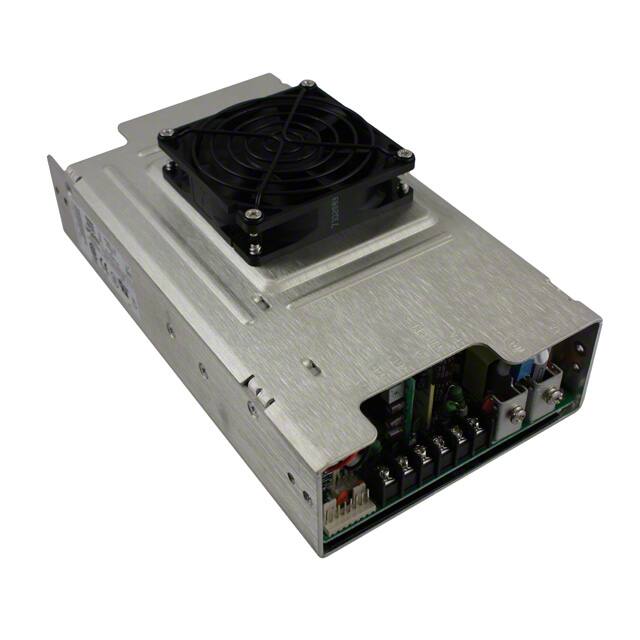

The Artesyn Embedded Power LPQ253-CF is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 250W and features 4 outputs with adjustable voltage ranging from ±5V to 25V.
This converter is designed for chassis mounting and includes features such as adjustable output, Power Factor Correction (PFC), remote sense, and a standby output. It operates within a temperature range of 0°C to 70°C with derating.
The unit has an efficiency of 75% and is approved by multiple agencies including CB, CE, CSA, NEMKO, UL, and VDE. Its dimensions are 228.6mm in length, 127.0mm in width, and 80.6mm in height.
The LPQ253-CF features a universal input capable of accepting a ±5 to 25V operating voltage.
The LPQ253-CF operates from 0°C to 70°C with derating.
The LPQ253-CF provides 4 independent outputs.
The dimensions are 228.6 mm length, 127.0 mm width, and 80.6 mm height.
