Mfr Part #:

LPQ252-CF

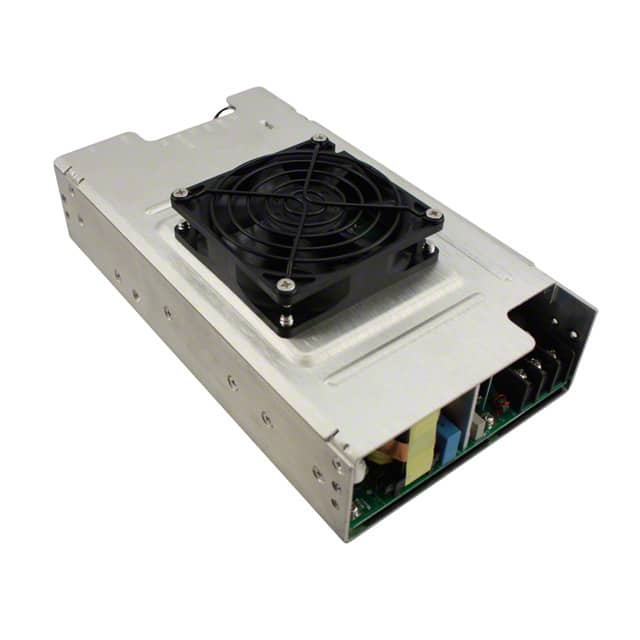

The Artesyn Embedded Power LPQ252-CF is an enclosed AC/DC converter delivering 250W of power. It features a wide output voltage range and chassis mount.

Stock on Request

LPQ252-CF Description

Short technical summary and product information.

The Artesyn Embedded Power LPQ252-CF is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a total power output of 250W and features a versatile voltage output range of ±5V to ±25V, with a maximum current of 6A.

This converter is designed for chassis mounting and includes features such as adjustable output, power factor correction (PFC), remote sense, and a standby output. It operates within a temperature range of 0°C to 70°C with derating and has an efficiency of 75%.

Key specifications include a length of 228.6mm, width of 127.0mm, and height of 80.6mm. It has received approvals from CB, CE, CSA, NEMKO, UL, and VDE, indicating compliance with various international safety standards.

LPQ252-CF Quick Information

Product Type: AC/DC Converter

Series: LPQ252

Canonical Name: Artesyn Embedded Power LPQ252-CF Enclosed AC/DC Converter

Subcategory: Enclosed

LPQ252-CF Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LPQ252-CF Features

250W enclosed AC/DC converter.
Output voltage range ±5V to ±25V.
Chassis mount for easy integration.
Features adjustable output and PFC.
Operates from 0°C to 70°C.

LPQ252-CF Applications

Ideal for commercial ITE power systems.
Suited for industrial control equipment.
Used in multi-rail power distribution.
Suitable for test and measurement gear.

LPQ252-CF FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating temperature range?

0°C to 70°C with derating.

How many outputs does the LPQ252-CF have?

Four outputs.

What is the efficiency?

75%.

What is the power rating?

250W.

What approvals does it have?

CB, CE, CSA, NEMKO, UL, VDE.

What is the mounting type?

Chassis Mount.

What are the physical dimensions?

228.6mm length, 127.0mm width, 80.6mm height.

Home

Account

Category	AC DC Converters
Manufacturer Name	Artesyn Embedded Power
Applications	ITE (Commercial)
Approval Agency	CB, CE, CSA, NEMKO, UL, VDE
Current	6 A
Efficiency	75%
Features	Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input
Height	80.6mm (3.17")
Length	228.6mm (9.00")
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature	0°C ~ 70°C (With Derating)
Power (Watts)	250W
Type	Enclosed / Chassis Mount / 75% / Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input / ±5 ~ 25V / ITE (Commercial) / CB, CE, CSA, NEMKO, UL, VDE / 4 / 228.6mm (9.00") / 127.0mm (5.00") / 80.6mm (3.17") / 6 A / 0°C ~ 70°C (With Derating) / 250W
Voltage	±5 ~ 25V
Width	127.0mm (5.00")
