| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

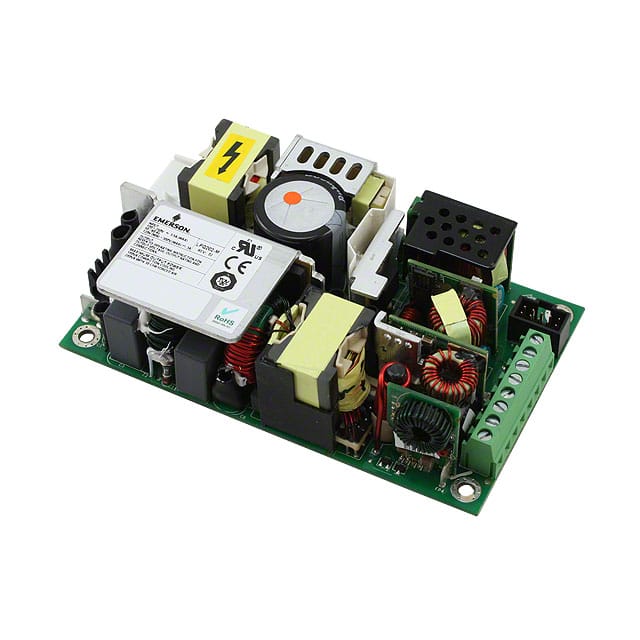

The Artesyn Embedded Power LPQ202-M is a versatile 200W open-frame AC/DC power supply designed for various applications, including ITE (Commercial) and Medical. It features a universal input voltage range of 90-264 VAC and provides four distinct outputs: +5V, +12V, +24V, and -12V.
This power supply offers a maximum output power of 100W with natural convection cooling and can deliver up to 200W when utilizing 30 CFM of forced air. Key electrical specifications include an efficiency of 84% typical at full load and an input frequency range of 47-63 Hz. The unit is designed for chassis mounting and has dimensions of 5.00" L x 3.00" W x 1.32" H.
Additional features include adjustable outputs, remote sense capability, and universal input. The operating temperature range is 0°C to 70°C with derating. Compliance includes CB and CE certifications.
The LPQ202-M provides four output voltages: +5 VDC, +12 VDC, +24 VDC, and -12 VDC.
The LPQ202-M can deliver up to 200W with 30 CFM of forced air, and 100W with free air convection cooling.
The LPQ202-M accepts a universal input voltage range of 90-264 VAC.
The operating temperature range is 0°C to 70°C ambient, with derating applied above 50°C.
The LPQ202-M is an open frame power supply designed for chassis mounting.
