| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

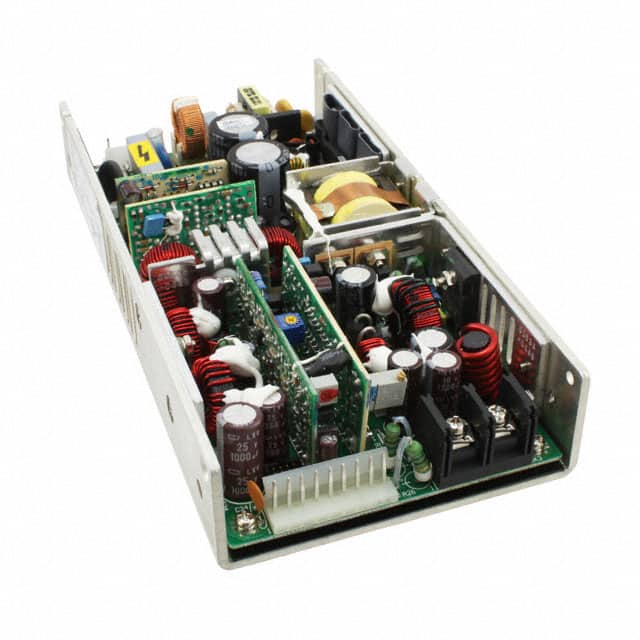

The Artesyn Embedded Power LPQ154 is an open frame AC/DC converter suitable for chassis mounting. It provides a 24V output and delivers 110W of power, with a capability of 150W under forced air cooling. Key features include adjustable output, load sharing, and remote sense capabilities, along with universal input.
This converter operates within a temperature range of 0°C to 70°C, with derating. It has an efficiency of 75% and is approved by CB and CE agencies. The dimensions are 216.0mm x 108.0mm x 38.1mm.
Designed for ITE (Commercial) applications, the LPQ154 is a versatile power solution for various electronic systems requiring reliable AC to DC conversion.
The output voltage is 24V.
The power rating is 110W, or 150W with forced air.
The operating temperature range is 0°C to 70°C with derating.
It supports chassis mount.
Key features include adjustable output, load sharing, remote sense, and universal input.
