| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
380 pcs
|
380 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Voltage |

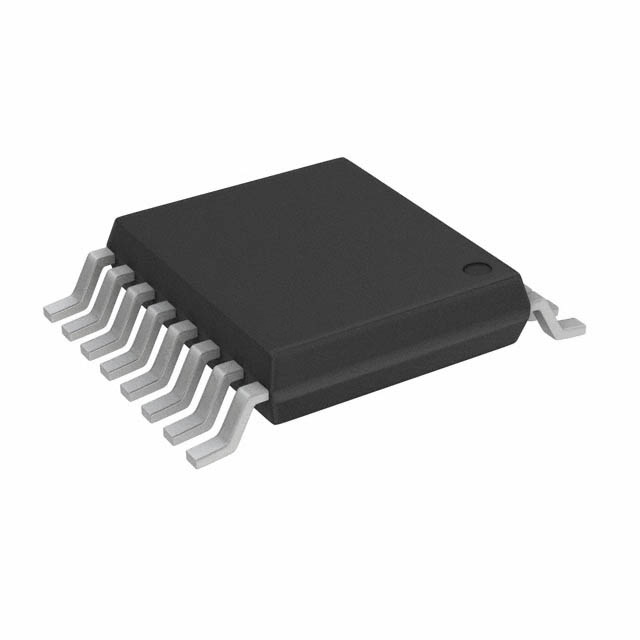

The LPC802M001JDH16FP is a high-performance 32-bit microcontroller from NXP Semiconductors, designed for a wide range of embedded applications. This microcontroller features a 16KB FLASH program memory and 2KB of RAM, providing ample storage for complex applications. It operates at a speed of 15MHz, ensuring efficient processing capabilities.
The LPC802M001JDH16FP supports a wide supply voltage range of 1.71V to 3.6V, making it suitable for various power supply environments. With 13 I/O pins, it offers flexibility in interfacing with external devices. The device is housed in a 16-lead TSSOP package and is suitable for surface-mount applications.
Key features include an ARM® Cortex®-M0+ core, internal oscillator, and support for I²C, SPI, and UART/USART communication protocols. It also includes A/D converters with a 12x12b resolution. The operating temperature range is -40°C to 105°C (TA).
This microcontroller is ideal for applications requiring a balance of performance, low power consumption, and compact design, such as consumer electronics, industrial automation, IoT devices, and medical equipment.
The program memory type is FLASH with a size of 16KB.
The operating voltage range is 1.71V to 3.6V.
The microcontroller is supplied in a 16-lead TSSOP package suitable for surface-mount applications.
The operating temperature range is -40°C to 105°C (TA).
Yes, the RoHS status is ROHS3 Compliant.
