| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,559 pcs
|
1559 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,390 pcs
|
1390 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Halogen Free | |
| High Temperature Loading | |
| Insulation Resistance (Min) | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Type | |
| Standard Packaging Quantity | |
| Tape & Reel | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width | |
| tanδ (max) | |
| terminal-spacing |

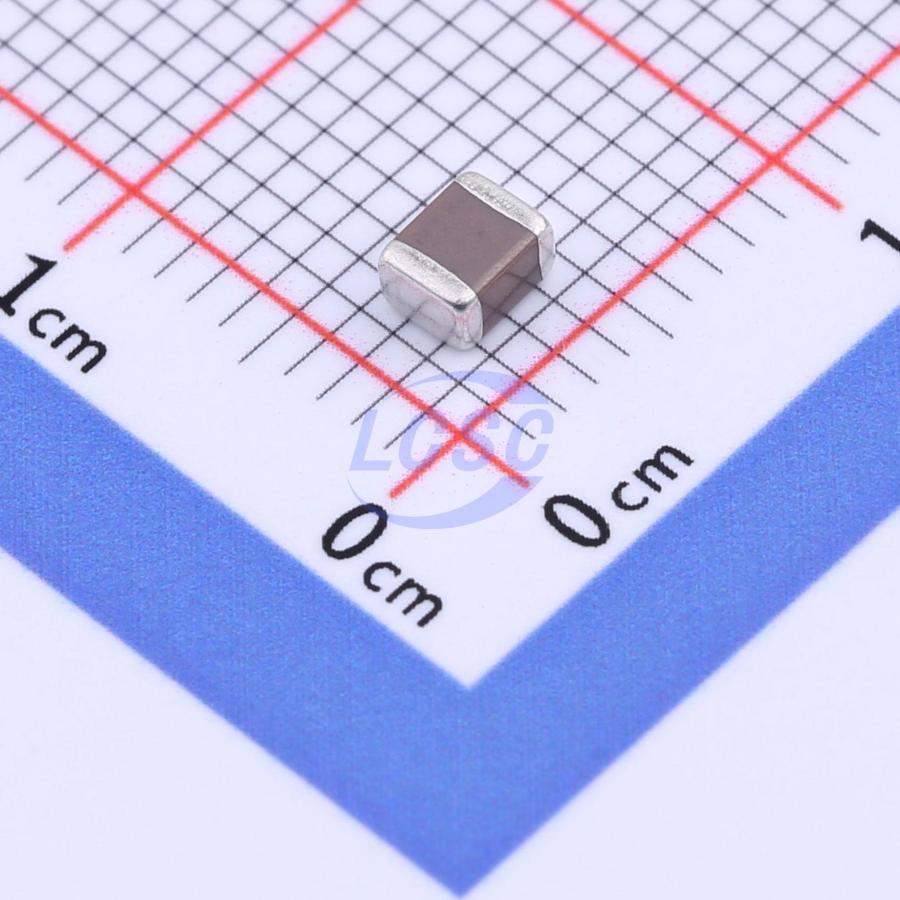

The Taiyo Yuden LMK325BJ106KN-T is a multilayer ceramic capacitor (MLCC) with a nominal capacitance of 10 µF and a tolerance of ±10%. It is rated for a DC voltage of 10V and features an X5R temperature coefficient, ensuring stable capacitance over an operating temperature range of -55°C to +85°C.
This capacitor is housed in a standard 1210 (3225 Metric) case size with dimensions of 3.20mm length, 2.50mm width, and a maximum thickness of 2.10mm. It is designed for surface mount assembly and is supplied in embossed tape packaging with a standard quantity of 2000 pieces per reel.
The part meets RoHS3, REACH, and Halogen Free compliance requirements. Key electrical characteristics include a maximum dissipation factor (tanδ) of 3.5% and a minimum insulation resistance of 500 MΩ·μF. It is suitable for general purpose applications such as decoupling, filtering, and energy storage in low-voltage DC circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.44 | $0.44 |
| 10+ | $0.20 | $0.20 |
| 100+ | $0.18 | $0.18 |
| 500+ | $0.14 | $0.14 |
| 1,000+ | $0.13 | $0.13 |
| 2,000+ | $0.12 | $0.12 |
| 4,000+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 10 µF with a tolerance of ±10%.
The rated voltage is 10V DC.
The temperature coefficient is X5R, with an operating temperature range of -55°C to +85°C.
The package is 1210 (3225 Metric) and mounting type is Surface Mount, MLCC.
Yes, it is RoHS3 compliant.
