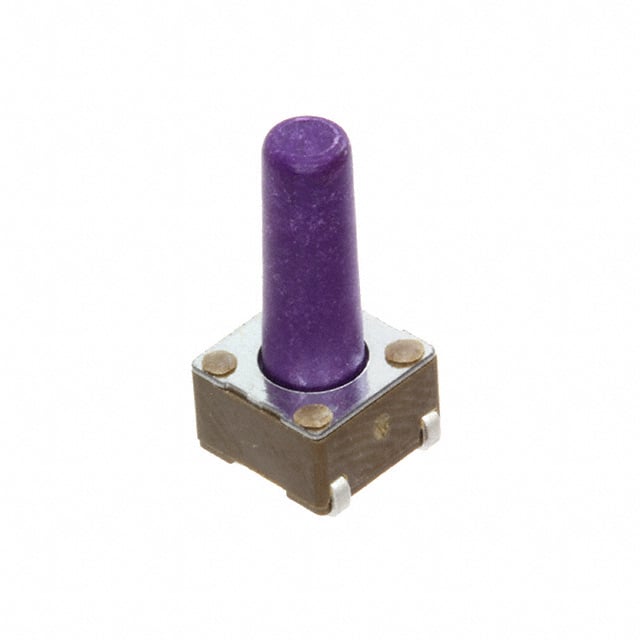

LL3301DF065QJ The E-Switch LL3301DF065QJ is a tactile switch with a SPST-NO circuit. It features a 0.05A @ 12VDC contact rating and a 65gf operating force.
Mfr Part #:

LL3301DF065QJ

Available from 1 distributors
Mfr Name: E-Switch
E-Switch
The E-Switch LL3301DF065QJ is a tactile switch with a SPST-NO circuit. It features a 0.05A @ 12VDC contact rating and a 65gf operating force.
✓ Total Stock: 14 pcs
$ Price Range: $0.75

LL3301DF065QJ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LL3301DF065QJ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Illumination
Lead Style
Mounting Type
Operating Force
Operating Temperature
Outline
Storage Temperature
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

LL3301DF065QJ Description

Short technical summary and product information.

The E-Switch LL3301DF065QJ is a tactile switch designed for surface mount applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration.



Key electrical specifications include a contact rating of 0.05A at 12VDC and an operating force of 65gf. The switch has a vertical actuator height of 13.00mm off the PCB and an outline dimension of 6.00mm x 6.00mm. It is non-illuminated and has a top-actuated orientation.



This tactile switch operates within a temperature range of -30°C to 85°C. It is designed with a J Lead termination style for secure mounting. The LL3301DF065QJ is classified as RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.

LL3301DF065QJ Quick Information

Product Type: Tactile Switch
Series: LL3301
Canonical Name: E-Switch LL3301DF065QJ Tactile Switch
Subcategory: Tactile Switch

LL3301DF065QJ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LL3301DF065QJ Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

LL3301DF065QJ Features

  • SPST-NO tactile switch.
  • 0.05A at 12VDC contact rating.
  • 65gf operating force.
  • 13.00mm actuator height.
  • Surface mount with J Lead termination.

LL3301DF065QJ Applications

  • Ideal for general purpose switching.
  • Suitable for compact PCB designs.
  • Used in electronic control modules.
  • Provides tactile feedback to users.

LL3301DF065QJ FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the LL3301DF065QJ?

The operating temperature range is -30°C to 85°C.

What is the contact rating for the LL3301DF065QJ tactile switch?

The contact rating is 0.05A at 12VDC.

What is the operating force required for the LL3301DF065QJ?

The operating force is 65gf.

What is the actuator height off the PCB for the LL3301DF065QJ?

The actuator height off the PCB is 13.00mm.

What type of mounting is used for the LL3301DF065QJ?

The mounting type is Surface Mount.
