| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,693 pcs
|
6693 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage | |
| Voltage | |
| Watchdog Timer |

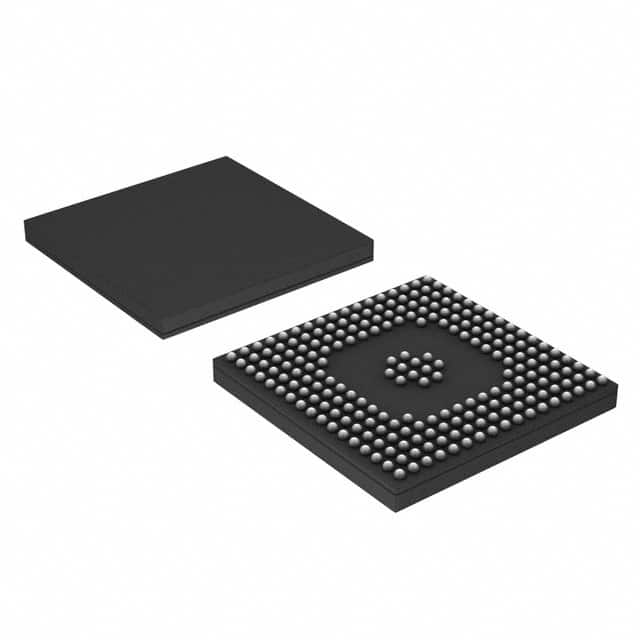

The LH79524N0F100A1,55 from NXP Semiconductors is a highly integrated 32-bit microcontroller based on the ARM720T RISC core. It operates at a CPU speed of 76.205 MHz and features an 8 kB cache with a write-back buffer and 16 kB of on-chip SRAM.
This microcontroller supports a flexible memory interface, including SDRAM and SRAM/Flash/ROM interfaces, with an external address space of up to 512 MB. It includes a multi-stream DMA controller with four 32-bit burst-based data streams. Connectivity options are extensive, featuring USB 2.0 (Full Speed), Ethernet MAC (10/100 Mbit/s), I2C, IrDA, SPI, SSI, SSP, and UART/USART interfaces.
Additional features include a 10-bit Analog-to-Digital Converter (ADC), an integrated Touch Screen Controller (TSC), a Watchdog Timer, and a Vectored Interrupt Controller. It supports three 16-bit timers with PWM capability and has a Real Time Clock. The device is available in a 208-LFBGA package and supports surface mount installation.
Designed for applications requiring robust processing and connectivity, the LH79524N0F100A1,55 is suitable for industrial automation, networking, consumer electronics, and automotive systems. It operates within a voltage range of 1.7V to 3.6V and has various low-power modes.
The CPU speed is 76.205 MHz.
It has 16 kB of on-chip SRAM.
It uses a 32-bit ARM720T RISC core.
Connectivity includes EBI/EMI, Ethernet, I2C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, and USB.
The package is 208-LFBGA.
The operating temperature is -40°C to 85°C (TA).
Yes, it features a 10-bit ADC.
