| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Drift | |
| Efficiency | |
| Height | |
| Hold Up Time | |
| Input Current | |
| Input Frequency | |
| Input Voltage | |
| Inrush Current | |
| Isolation Voltage | |
| Leakage Current | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Output Voltage Adjustment Range | |
| Overcurrent Protection | |
| Overvoltage Protection | |
| Ripple & Noise | |
| Start-up Time | |
| Tape & Reel | |
| Temperature Regulation | |
| Type | |
| Voltage | |
| Width |

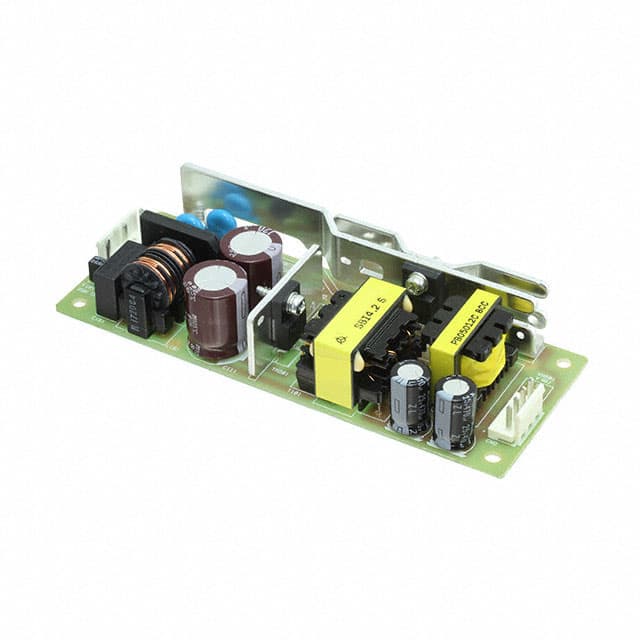

The Cosel LGA50A-12 is an open frame AC/DC power supply converter designed for ITE (Commercial) applications. It delivers a stable 12V DC output with a maximum current of 4.3A, resulting in a total output power of 51.6W.
This converter accepts a wide input voltage range of 85-264 VAC and operates at frequencies between 47-440 Hz. It boasts an efficiency of 82% and includes built-in protection circuits for inrush current, overcurrent, and overvoltage.
Key electrical specifications include line regulation of 48mV, load regulation of 100mV, and ripple noise of 150mVp-p. The operating temperature range is -10°C to 60°C. The unit features a compact mechanical design with dimensions of 132.1mm in length, 50.0mm in width, and 28.4mm in height.
Safety features include an isolation voltage of 2000 VAC. The LGA50A-12 is compliant with RoHS directives and carries CE, Low Voltage Directive, and UKCA markings, indicating adherence to relevant safety and environmental standards for commercial electronic equipment.
The output voltage is 12V.
The maximum output current is 4.3A.
The input voltage range is 85-264 VAC.
The efficiency is 82%.
The operating temperature range is -10°C to 60°C.
It includes inrush current, overcurrent, and overvoltage protection circuits.
The dimensions are 132.1mm (Length) x 50.0mm (Width) x 28.4mm (Height).
