| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Number of LABs | |
| Number of Logic Elements | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Total RAM Bits | |
| Voltage |

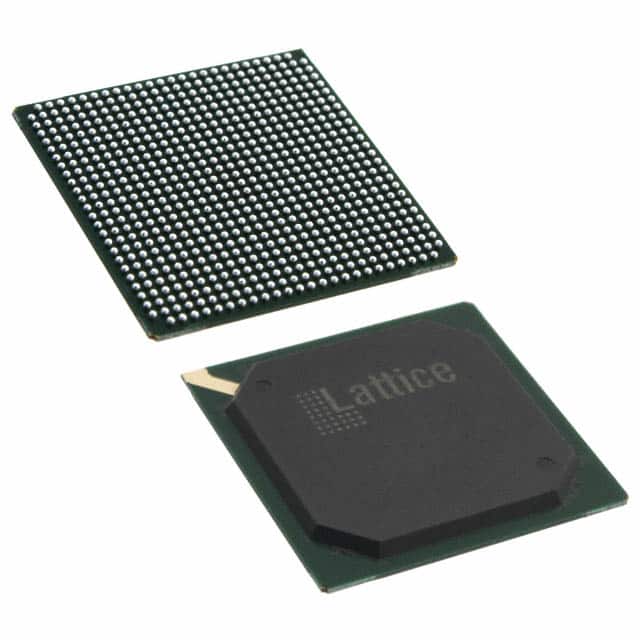

The Lattice Semiconductor LFXP2-30E-5FN672C is a Field Programmable Gate Array (FPGA) from the LatticeXP2 family. It features a flexiFLASH architecture providing instant-on capability and infinite reconfigurability. This device offers 29,000 logic elements and supports up to 472 I/O pins, making it suitable for complex digital designs.
The FPGA operates within a voltage range of 1.14V to 1.26V and has an operating temperature range of 0°C to 85°C (TJ). It includes 396,288 total RAM bits for embedded memory applications. The device is supplied in a 672-FPBGA (27x27) package, designed for surface mount installation.
Key features include sysDSP blocks for high-performance multiply and accumulate operations, sysCLOCK PLLs for clock management, and a flexible sysIO buffer supporting various I/O standards. The device also supports live update technology with secure updates via AES encryption and dual-boot capabilities.
This FPGA is compliant with RoHS3 standards and has an MSL rating of 1, indicating unlimited moisture sensitivity. Its compact and robust packaging makes it suitable for a wide range of embedded applications requiring high-density logic and flexible configuration.
The LFXP2-30E-5FN672C FPGA has 29,000 logic elements.
The operating voltage for the LFXP2-30E-5FN672C FPGA is between 1.14V and 1.26V.
The LFXP2-30E-5FN672C FPGA is supplied in a 672-FPBGA (27x27) package.
The operating temperature range for this FPGA is 0°C to 85°C (TJ).
The LFXP2-30E-5FN672C FPGA supports 472 I/O pins.
