| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
168 pcs
|
168 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Number of LABs | |
| Number of Logic Elements | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Total RAM Bits | |
| Voltage |

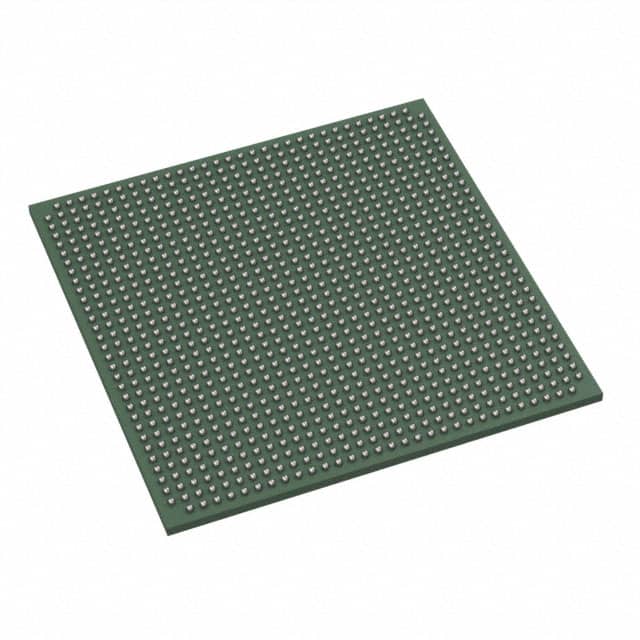

The Lattice Semiconductor LFSC3GA25E-6FFN1020C is a Field Programmable Gate Array (FPGA) designed for high-performance applications. It features a fabric with 25,000 logic elements and 6,250 logic array blocks (LABs), supporting a total of 1.97 Mbits of embedded block RAM. This device offers 476 I/O pins and operates within a voltage range of 0.95V to 1.26V.
Key features include a global clock frequency of 700MHz and edge clocks up to 1GHz. It supports high-speed SERDES with performance ranging from 600Mbps to 3.8Gbps and PURESPEED I/O up to 2Gbps DDR. The FPGA includes 8 analog PLLs and 12 DLLs for flexible clock management.
Packaged in a 1020-OFCBGA (33x33) or 1020-BBGA, FCBGA, the LFSC3GA25E-6FFN1020C is designed for surface mount applications. It operates within a temperature range of 0°C to 85°C (TJ).
The operating voltage for the LFSC3GA25E-6FFN1020C FPGA ranges from 0.95V to 1.26V.
The LFSC3GA25E-6FFN1020C has 476 I/O pins.
The operating temperature range for the LFSC3GA25E-6FFN1020C is 0°C to 85°C (TJ).
The LFSC3GA25E-6FFN1020C is supplied in a 1020-OFCBGA (33x33) or 1020-BBGA, FCBGA package.
The LFSC3GA25E-6FFN1020C has a total of 1,966,080 RAM bits.
The LFSC3GA25E-6FFN1020C contains 25,000 logic elements.
The supported electrical standards include LVCMOS, LVTTL, SSTL, HSTL, PCI, PCI-X, LVDS, Mini-LVDS, Bus-LVDS, MLVDS, LVPECL, and RSDS.
