| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
656 pcs
|
656 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Analog PLLs and DLLs | |
| DDR Memory Support | |
| Device Configuration Features | |
| Distributed RAM | |
| Embedded Block RAM (EBR) | |
| Embedded SERDES Channels | |
| Embedded SERDES Data Rates | |
| General Purpose DLLs | |
| I/O Pins | |
| Logic Elements | |
| Mounting Type | |
| Number of I | |
| Number of LABs | |
| Number of Logic Elements | |
| Operating Temperature | |
| Power Supply | |
| Programmable I/O Buffer Interfaces | |
| Source Synchronous I/O Standards | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Total RAM Bits | |
| Voltage | |
| sysDSP Blocks |
The Lattice Semiconductor LFE2M70SE-5FN900C is a Field Programmable Gate Array (FPGA) IC from the ECP2M series. It offers a high logic density with 67,000 logic elements and 8,375 LABs/CLBs, supported by 4,642,816 total RAM bits.
This device features 416 I/O pins and operates within a voltage range of 1.14V to 1.26V, with a typical power supply of 1.2V. The operating temperature range is 0°C to 85°C (TJ). It is designed for surface mounting and comes in a 900-BBGA package.
The datasheet highlights advanced features such as embedded SERDES supporting data rates up to 3.125 Gbps across up to 16 channels, sysDSP blocks for high-performance multiply and accumulate operations, and flexible memory resources including embedded block RAM and distributed RAM. The programmable sysI/O buffer supports a wide range of interfaces, including LVTTL, LVCMOS, SSTL, HSTL, and differential standards like LVDS and LVPECL.
Configuration options include 1149.1 Boundary Scan compliance, SPI boot flash interface, and support for dual boot images. The device also incorporates TransFR™ I/O for field updates and a soft error detect macro.
The LFE2M70SE-5FN900C FPGA has 67,000 logic elements.
The LFE2M70SE-5FN900C features 416 I/O pins.
The operating voltage range for the LFE2M70SE-5FN900C is 1.14V to 1.26V.

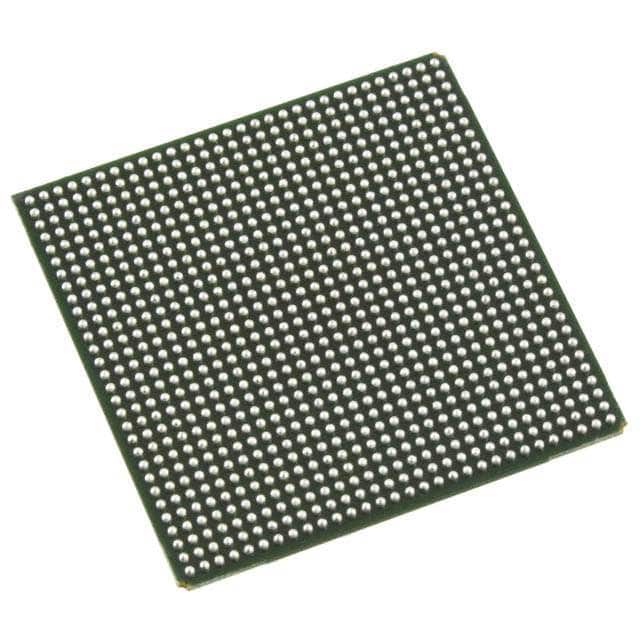

The LFE2M70SE-5FN900C is supplied in a 900-BBGA package.
The operating temperature range is 0°C to 85°C.
The LFE2M70SE-5FN900C has a total of 4,642,816 RAM bits.
The embedded SERDES supports data rates from 250 Mbps to 3.125 Gbps.
