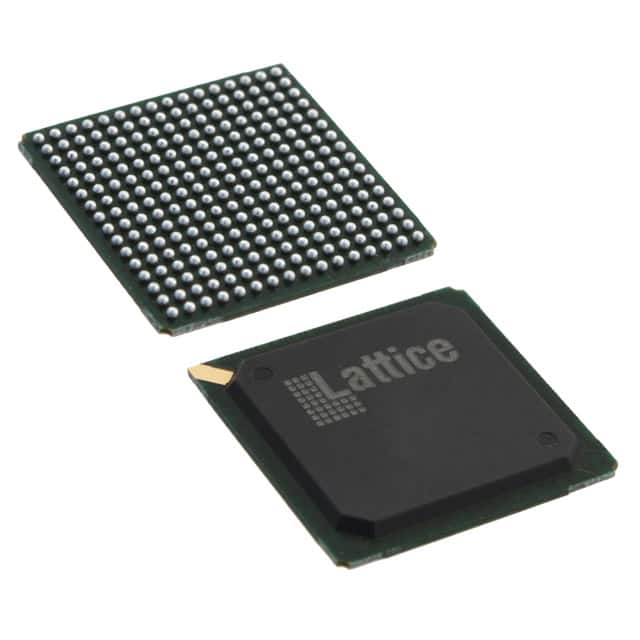

LFE2M20E-5FN256C The Lattice LFE2M20E-5FN256C is an FPGA from the LatticeECP2/M family, featuring 19000 LUTs and 140 I/O pins. It operates at 1.2V and is supplied in a 256-FBGA package.
Mfr Part #:

LFE2M20E-5FN256C

Available from 1 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice LFE2M20E-5FN256C is an FPGA from the LatticeECP2/M family, featuring 19000 LUTs and 140 I/O pins. It operates at 1.2V and is supplied in a 256-FBGA package.
✓ Total Stock: 13 pcs

LFE2M20E-5FN256C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
13 pcs
On Request
13 pcs On Request 1 On Request On Request 1103 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LFE2M20E-5FN256C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Tape & Reel
Technology
Total RAM Bits
Voltage
View Similar Products (0)

LFE2M20E-5FN256C Description

Short technical summary and product information.

The Lattice LFE2M20E-5FN256C is a Field Programmable Gate Array (FPGA) belonging to the LatticeECP2/M family. This device offers a logic density of 19000 LUTs and supports 140 I/O pins, making it suitable for system integration tasks.



Key features include embedded SERDES capabilities with data rates up to 3.125 Gbps and up to 16 channels, along with sysDSP blocks for high-performance multiply and accumulate operations. The FPGA provides flexible memory resources with embedded block RAM (EBR) and distributed RAM, as well as sysCLOCK Analog PLLs and DLLs for clock management.



Designed for high performance and cost-effectiveness, the LFE2M20E-5FN256C utilizes 90nm technology. It supports a wide range of interfaces through its programmable sysIO buffer, including LVTTL, LVCMOS, SSTL, HSTL, and differential standards. The device is configured using a 256-pin FBGA package, suitable for surface mounting.



This FPGA is designed for applications requiring advanced features like high-speed serial communication and digital signal processing. Its robust feature set and flexible I/O options make it a versatile component for various embedded systems.

LFE2M20E-5FN256C Quick Information

Product Type: FPGA
Series: LatticeECP2/M
Canonical Name: Lattice LFE2M20E-5FN256C FPGA
Subcategory: Field Programmable Gate Array

LFE2M20E-5FN256C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LFE2M20E-5FN256C Features

  • 19000 logic elements and 2375 LABs.
  • 140 input/output pins available.
  • Supports 1.2V operating voltage.
  • Features embedded SERDES and DSP blocks.
  • Packaged in a 256-FBGA for surface mounting.

LFE2M20E-5FN256C Applications

  • Ideal for system integration tasks.
  • Suitable for high-speed serial communication.
  • Used in applications requiring DSP.
  • Supports diverse interface standards.

LFE2M20E-5FN256C FAQs

6 frequently asked questions generated from this part’s specifications.
What is the logic density of the LFE2M20E-5FN256C FPGA?

The LFE2M20E-5FN256C FPGA has 19000 logic elements and 2375 LABs.

How many I/O pins does the LFE2M20E-5FN256C FPGA offer?

The LFE2M20E-5FN256C FPGA provides 140 I/O pins.

What is the operating voltage for the LFE2M20E-5FN256C FPGA?

The LFE2M20E-5FN256C FPGA operates at 1.2V.

What package type is the LFE2M20E-5FN256C FPGA supplied in?

The LFE2M20E-5FN256C FPGA is supplied in a 256-FBGA package.

What are the embedded SERDES capabilities of the LatticeECP2/M family?

The LatticeECP2/M family features embedded SERDES with data rates from 250 Mbps to 3.125 Gbps, supporting up to 16 channels per device.

What types of RAM are available in the LatticeECP2/M family?

The LatticeECP2/M family offers flexible memory resources including 55Kbits to 5308Kbits of sysMEM Embedded Block RAM (EBR) and 12K to 202Kbits of distributed RAM.
