| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Number of LABs | |
| Number of Logic Elements | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Total RAM Bits | |
| Voltage |

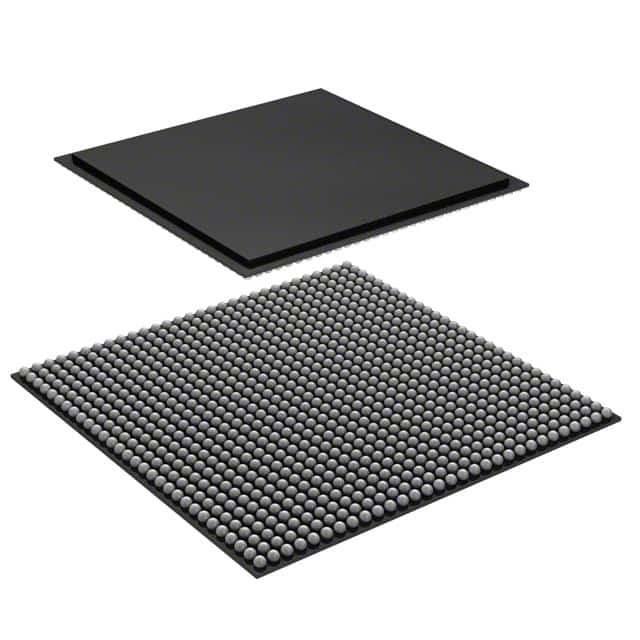

The Lattice LFE2-70E-5FN900C is an FPGA from the LatticeECP2/M family, offering high logic density for system integration. It features 68,000 LUTs (Look-Up Tables) and 583 I/O pins, making it suitable for complex digital designs.
This device supports a wide range of interfaces with its programmable sysIO buffer, including LVTTL, LVCMOS, SSTL, HSTL, LVDS, and more. It also includes embedded memory resources with up to 5308 Kbits of sysMEM Embedded Block RAM and distributed RAM options. The FPGA incorporates sysDSP blocks for high-performance multiply and accumulate operations, along with sysCLOCK Analog PLLs and DLLs for flexible clock management.
The LFE2-70E-5FN900C is packaged in a 900-FPBGA (31x31 mm) and is designed for surface mount applications. It operates within a voltage range of 1.14V to 1.26V and has an operating temperature range of 0°C to 85°C (TJ). The device also supports standard configuration features like 1149.1 Boundary Scan compliance and SPI boot flash interface.
The LFE2-70E-5FN900C FPGA has 68,000 logic elements (LUTs).
The LFE2-70E-5FN900C FPGA provides 583 I/O pins.
The LFE2-70E-5FN900C FPGA operates between 1.14V and 1.26V.
The LFE2-70E-5FN900C FPGA is supplied in a 900-FPBGA (31x31) package.
The operating temperature range for the LFE2-70E-5FN900C FPGA is 0°C to 85°C (TJ).
The LFE2-70E-5FN900C features up to 5308 Kbits of sysMEM Embedded Block RAM and distributed RAM options.
