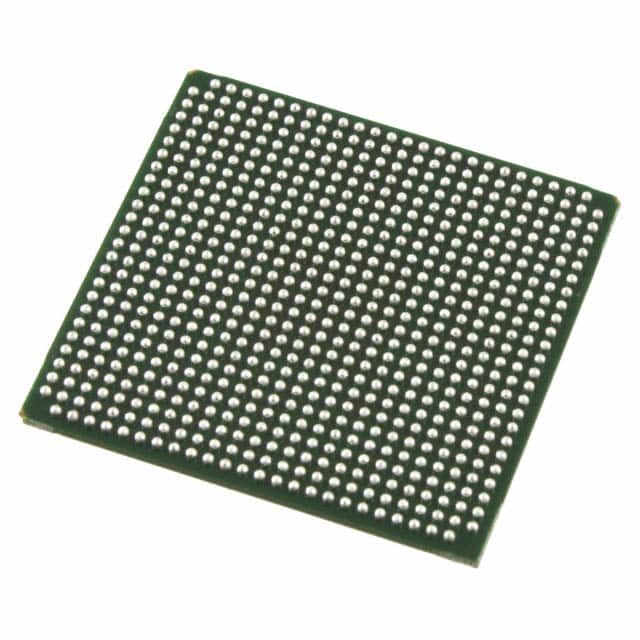

The Lattice Semiconductor LFE2-20E-7FN672C is an FPGA from the ECP2 series, designed for high logic density and system integration. It offers 21,000 LUTs and supports 402 I/O pins, making it suitable for complex digital designs.
Key electrical specifications include a maximum operating frequency of 420 MHz and a total RAM bit count of 282,624. The device features 276 kbit of Embedded Block RAM (EBR) and 42 kbit of Distributed RAM. It operates within a supply voltage range of 1.14V to 1.26V.
This FPGA is housed in a 672-FPBGA package and is designed for surface mounting. The operating temperature range is from 0°C to 85°C (TJ). The device supports a wide array of I/O standards, including LVTTL, LVCMOS, SSTL, and HSTL, providing flexibility for various interface requirements. Configuration options include 1149.1 Boundary Scan compliance and SPI boot flash interface support.
The LFE2-20E-7FN672C FPGA has 21,000 logic elements.
The LFE2-20E-7FN672C FPGA has 402 I/O pins.
The operating voltage range for the LFE2-20E-7FN672C FPGA is 1.14V to 1.26V.
The LFE2-20E-7FN672C FPGA is supplied in a 672-FPBGA package.
The maximum operating temperature for the LFE2-20E-7FN672C FPGA is 85°C (TJ).
The maximum operating frequency of the LFE2-20E-7FN672C FPGA is 420 MHz.
The LFE2-20E-7FN672C FPGA has 276 kbit of Embedded Block RAM (EBR).
