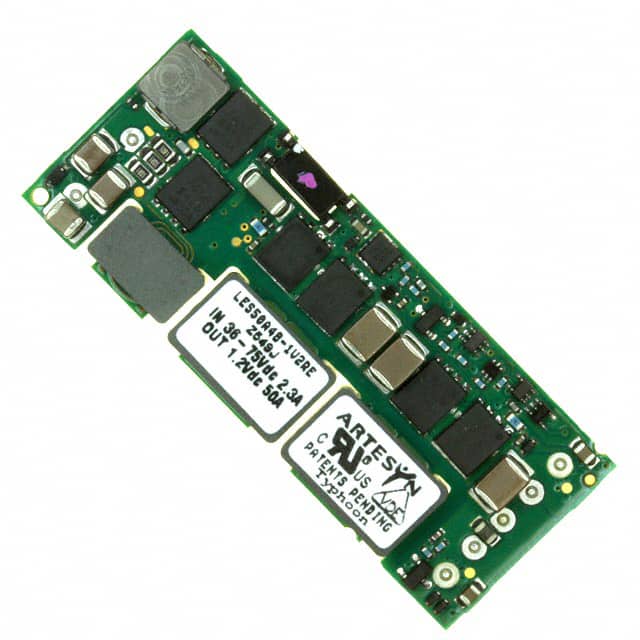

LES50A48-1V2RE Isolated DC-DC converter module delivering 1.2V at up to 50A (60W). Features a 36-75V input range, through-hole 1/8 brick package, and 86% efficiency.
Mfr Part #:

LES50A48-1V2RE

Available from 1 distributors
Mfr Name: Artesyn Embedded Power
Artesyn Embedded Power
Isolated DC-DC converter module delivering 1.2V at up to 50A (60W). Features a 36-75V input range, through-hole 1/8 brick package, and 86% efficiency.
✓ Total Stock: 6 pcs

LES50A48-1V2RE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LES50A48-1V2RE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Control Features
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Standard Number
Type
Voltage
Width
View Similar Products (0)

LES50A48-1V2RE Description

Short technical summary and product information.

The Artesyn Embedded Power LES50A48-1V2RE is an isolated DC-DC converter module in the standard 1/8 brick form factor. It delivers a regulated 1.2V output at up to 50A, providing 60W of output power from a nominal 48V input (range 36-75V).



The module offers typical efficiency of 86% and includes comprehensive protection features: overcurrent, overtemperature, overvoltage, short-circuit, and undervoltage lockout. Remote on/off control with active-low enable simplifies system integration.



Housed in an 8-DIP through-hole package measuring 58.4mm x 22.9mm x 4.8mm, the converter is designed for commercial ITE applications. It carries cURus safety approval to standard 60950-1 and is rated for operation from -40°C to +85°C.

LES50A48-1V2RE Quick Information

Product Type: Isolated DC-DC Converter
Canonical Name: Artesyn Embedded Power LES50A48-1V2RE Isolated DC-DC Converter, 1.2V Output, 60W
Subcategory: DC DC Converters

LES50A48-1V2RE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LES50A48-1V2RE Features

  • Delivers 1.2V output at up to 50A.
  • Input voltage range 36V to 75V.
  • 86% typical conversion efficiency.
  • Includes OCP, OTP, OVP, SCP, UVLO protections.
  • Through-hole 1/8 brick 8-DIP package.

LES50A48-1V2RE Applications

  • Suitable for commercial ITE power systems.
  • Use in distributed power architectures.
  • Ideal for telecom and networking equipment.

LES50A48-1V2RE FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the LES50A48-1V2RE?

The output voltage is 1.2V nominal, and the maximum output current is 50A.

What is the input voltage range for this converter?

The input voltage range is 36V to 75V.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What package type is the LES50A48-1V2RE?

It is housed in an 8-DIP through-hole module, 1/8 brick package.

What protection features does this converter include?

It includes overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), short-circuit (SCP), and undervoltage lockout (UVLO) protection.

What is the efficiency of the LES50A48-1V2RE?

Typical efficiency is 86%.
