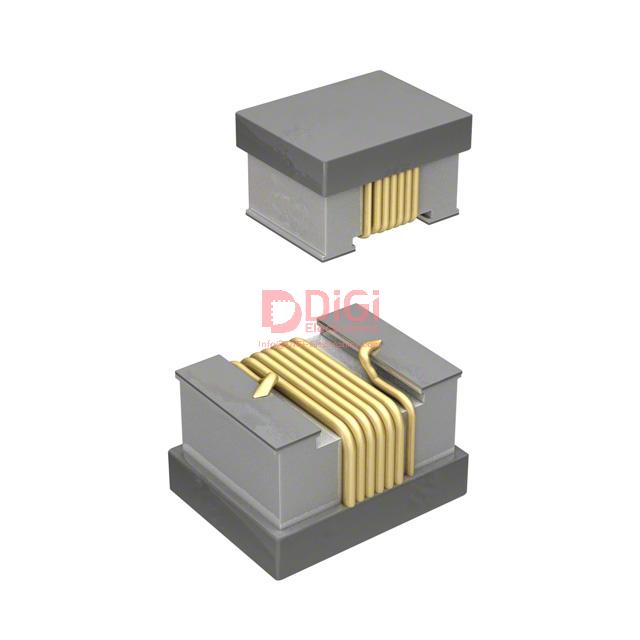

LEM2520T1R5J The Taiyo Yuden LEM2520T1R5J is a wirewound fixed inductor with a 1.5 µH inductance rating. It is designed for surface mounting and operates within a -40°C to 85°C temperature range.
Mfr Part #:

LEM2520T1R5J

Available from 1 distributors
Mfr Name: Taiyo Yuden
Taiyo Yuden
The Taiyo Yuden LEM2520T1R5J is a wirewound fixed inductor with a 1.5 µH inductance rating. It is designed for surface mounting and operates within a -40°C to 85°C temperature range.
✓ Total Stock: 2,000 pcs

LEM2520T1R5J Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LEM2520T1R5J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Mounting Type
Operating Temperature
Q @ Freq
Shielding
Supplier Device Package
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

LEM2520T1R5J Description

Short technical summary and product information.

This wirewound fixed inductor from Taiyo Yuden, part number LEM2520T1R5J, offers a reliable inductance of 1.5 µH with a tolerance of ±5%. It is rated for a current of 220 mA and has a maximum DC resistance of 1.3 Ohms.



The component is designed for surface mounting and comes in a compact 1008 (2520 Metric) package, measuring 2.50mm in length and 2.00mm in width and height. It features unshielded construction and operates within a temperature range of -40°C to 85°C.



With a Q factor of 30 at 7.96MHz and a self-resonant frequency of 135MHz, this inductor is suitable for various electronic applications requiring stable inductive properties. Its RoHS3 compliance and MSL 1 rating indicate standard handling and environmental considerations.

LEM2520T1R5J Quick Information

Product Type: Fixed Inductor
Canonical Name: Taiyo Yuden LEM2520T1R5J Wirewound Fixed Inductor
Subcategory: Fixed Inductors

LEM2520T1R5J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LEM2520T1R5J Features

  • Wirewound construction for stable inductance.
  • 1.5 µH inductance with ±5% tolerance.
  • Rated for 220 mA current.
  • Surface mountable 1008 package.
  • Operates from -40°C to 85°C.

LEM2520T1R5J Applications

  • Suitable for signal filtering.
  • Used in power supply circuits.
  • Ideal for RF applications.
  • General electronic circuit design.

LEM2520T1R5J FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance value of the LEM2520T1R5J?

The inductance value is 1.5 µH.

What is the current rating for the LEM2520T1R5J inductor?

The current rating is 220 mA.

What is the maximum DC resistance (DCR) of this inductor?

The maximum DC resistance is 1.3 Ohms.

What is the operating temperature range for the LEM2520T1R5J?

The operating temperature range is -40°C to 85°C.

What type of package is the LEM2520T1R5J inductor in?

The inductor is in a 1008 (2520 Metric) package.
