| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Industrial Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

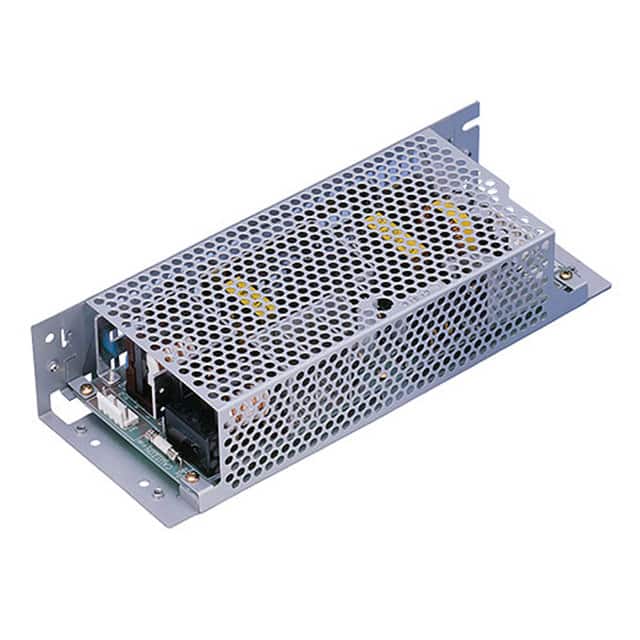

The Cosel LEB150F-0512-SNR is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It features dual outputs, providing 5V and 12V with maximum currents of 5A and 14A respectively. The unit accepts a wide input voltage range of 85 to 264 VAC and offers an efficiency of 79%.
With a power rating of 150W, this converter is suitable for various commercial applications. It is designed for chassis mounting, making it easy to integrate into system designs. The operating temperature range is from -10°C to 70°C, and it has an isolation voltage of 3kV.
Compliance certifications include CE, cURus, and TUV. The product is listed with RoHS3 compliance, MSL 1, and REACH unaffected status.
The Cosel LEB150F-0512-SNR provides dual outputs of 5V and 12V.
The maximum output current for the 5V rail is 5A, and for the 12V rail is 14A.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -10°C to 70°C.
This converter supports chassis mounting.
The product is RoHS3 Compliant.
