| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

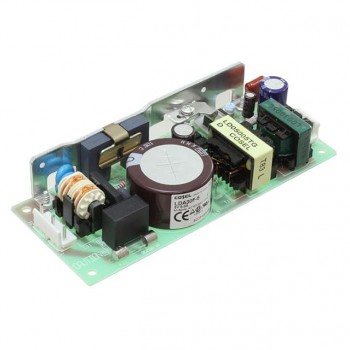

The Cosel LDA300W-24-CGT is an open frame AC/DC power supply designed for ITE (Commercial) applications. It offers a single 24V output with a maximum current of 14A, providing a total power of 336W.
This converter operates with a universal input voltage range of 85-132 VAC and 170-264 VAC, ensuring flexibility in various power environments. It boasts an efficiency of 86% and operates within a temperature range of -10°C to 70°C with derating.
Key features include adjustable output and universal input capabilities. The unit is designed for chassis mounting and has dimensions of 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm). It is approved by cCSAus, CE, cURus, and TUV, adhering to standard 60950-1.
The output voltage is 24V.
The maximum output current is 14A.
The power rating is 336W.
The operating temperature range is -10°C to 70°C with derating.
Key features include adjustable output and universal input.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
