| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Product Type | |
| Type | |
| Voltage | |
| Width |

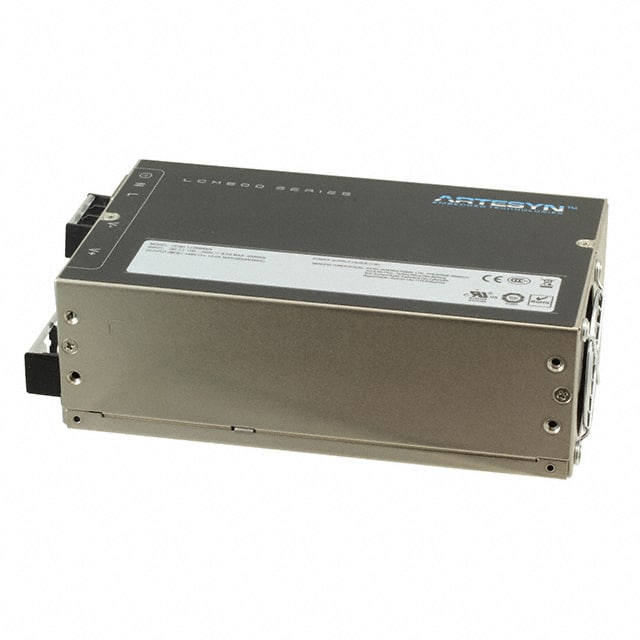

The Artesyn Embedded Technologies LCM600U-T-A is a high-power AC-DC converter designed for demanding applications. It delivers a robust 600W output power with a stable 36VDC output voltage and a current rating of 16.7A.
This converter features a universal input voltage range from 85 VAC to 264 VAC, making it suitable for global use. Its design incorporates features such as Power Factor Correction (PFC), adjustable output, load sharing, and remote on/off and sense capabilities, enhancing its versatility and performance.
The LCM600U-T-A is built for reliability, operating within a temperature range of -40°C to 70°C with derating. Its dimensions are 190.5mm x 114.3mm x 61.0mm (7.50" x 4.50" x 2.40"), and it is suitable for chassis mounting.
Applications for this power supply include ITE (Commercial) and Medical equipment, where stable and efficient power conversion is critical. The unit is also recognized for its high efficiency of 89% and meets CB approval standards.
Output is 36VDC at 600W.
85 VAC to 264 VAC.
89%
-40°C to 70°C with derating.
Chassis mount.
3 kVRMS.
ITE (Commercial) and Medical.
