| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

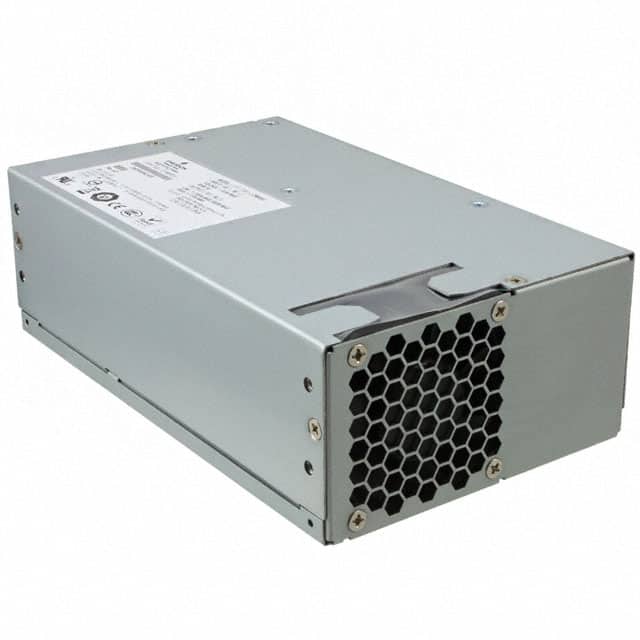

The Artesyn Embedded Power LCM600Q-T-N is a high-power AC/DC converter with a 600W output rating. Designed as a Front End type, it is suitable for ITE (Commercial) and Medical applications.
Key electrical features include adjustable output, load sharing capabilities, Power Factor Correction (PFC), and universal input. It operates within a temperature range of -40°C to 70°C with derating. The converter provides an output current of 27A and an output voltage of 24V.
Mechanically, this converter is designed for chassis mounting. Its dimensions are 190.5mm in length, 114.3mm in width, and 61.0mm in height. It also includes features for remote on/off and remote sense functionality.
The LCM600Q-T-N provides a single 24V output at 27A.
The LCM600Q-T-N is rated for 600W.
The efficiency is 89%.
The operating temperature range is -40°C to 70°C with derating.
The LCM600Q-T-N is chassis mount.
The LCM600Q-T-N is suitable for ITE (commercial) and medical applications.
