| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

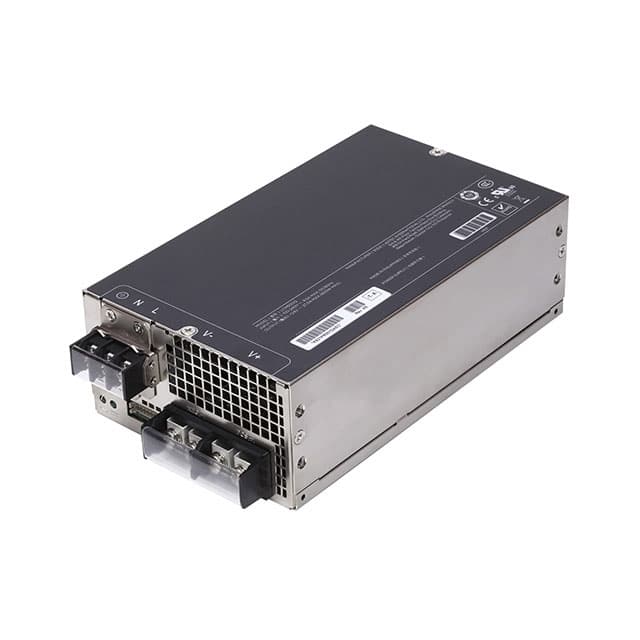

The Artesyn Embedded Power LCM600N-T-N is a front-end AC/DC converter designed for ITE (Commercial) and Medical applications. It delivers a power output of 600W with a single 15V output voltage and a maximum current of 44A.
Key electrical specifications include a universal input voltage range of 85 to 264 VAC and an efficiency of 89%. The converter features adjustable output, load sharing, power factor correction (PFC), remote on/off, and remote sense capabilities. It provides 4 kV of isolation voltage.
Mechanically, the LCM600N-T-N is designed for chassis mounting with dimensions of 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm). The operating temperature range is -40°C to 70°C with derating.
Compliance includes RoHS3, MSL 1, and REACH Unaffected status. The approval agency is CB.
85 to 264 VAC.
15 V.
44 A.
600 W.
89%.
4 kV.
-40°C to 70°C with derating.
