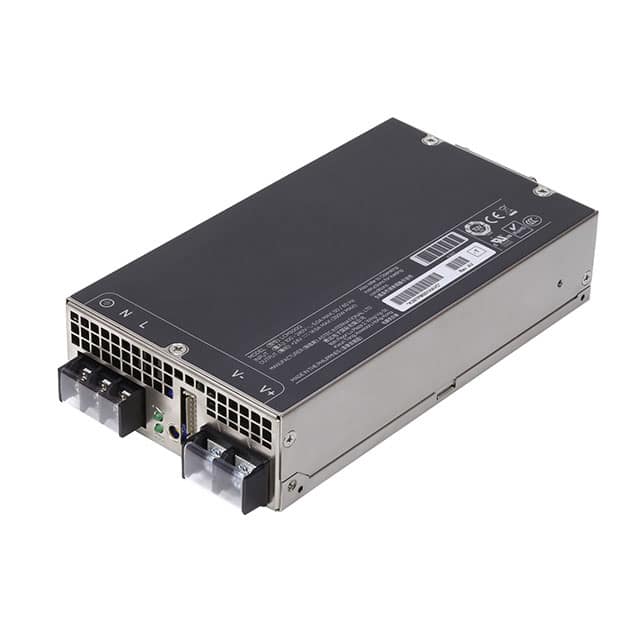

The Artesyn Embedded Technologies LCM300W-T is a 300W bulk front-end AC-DC power supply designed for industrial and medical applications. It provides a single 48V output at 6.3A, delivering up to 310W of power. The unit operates over a wide input voltage range of 90 to 264 VAC and features a typical efficiency of 91% at full load and 230 VAC.
Key features include a compact size of 7.00" x 4.00" x 1.61", adjustable output voltage, load sharing capabilities, and remote sense functionality. The power supply is built with high-quality components and robust screw terminals for reliable connections. It also incorporates variable-speed 'Smart Fans' for efficient cooling and extended lifespan.
This series is backed by comprehensive industrial and medical safety approvals, including UL, CSA, TUV, CCC, CE, and UKCA markings. It meets EMI Class B standards and EN61000 immunity requirements. The LCM300W-T is suitable for demanding environments requiring stable and efficient power conversion.
The input voltage range is 90 to 264 VAC.
The LCM300W-T comes in an enclosed chassis mount package.
The operating temperature range is -40°C to 70°C with derating.
The LCM300W-T provides a single 48 VDC output at 6.3 A with a total power of 310 W.
The typical efficiency is greater than 91% at full load and 230 VAC nominal.
The input-to-output isolation voltage is 4000 VAC.
The dimensions are 177.8 mm (length) x 101.6 mm (width) x 41.0 mm (height).
