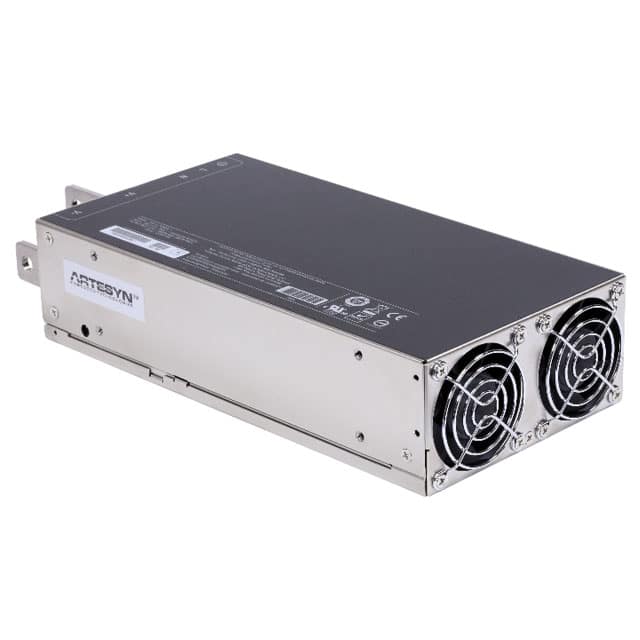

The Artesyn Embedded Power LCM3000W-T is a 3000 Watt bulk front-end AC/DC power supply designed for industrial and medical applications. It operates with an input voltage range of 90 to 264 VAC or 128 to 370 VDC, providing a single output.
Key electrical specifications include a maximum output power of 3000W, with derating to 1500W below 180 VAC input. The unit boasts high efficiency, typically over 90% at full load and 230 VAC nominal. It features adjustable output, Power Factor Correction (PFC), PMBus™ communication, remote sense, and a universal input.
The LCM3000W-T has a compact form factor measuring 2.5" x 7.0" x 10.9" (63.5mm x 177.8mm x 276.9mm), offering a power density of 15.7 Watts per cubic inch. It is designed for rack mounting and operates within an ambient temperature range of -40°C to 70°C with derating.
Compliance includes EMI Class A with a 6db margin, EN61000 Immunity, and various safety approvals such as ULcUL Recognized ITE and Medical, TUV-SuD ITE + Medical, CE LVD, and CB Report. It meets standard numbers IEC60601-1, IEC60950-1, and IEC62368-1.
The maximum output power is 3000W.
The input voltage range is 90 to 264 VAC.
The typical efficiency is over 90% at full load and 230 VAC nominal.
The dimensions are 2.5 inches x 7.0 inches x 10.9 inches.
The operating temperature range is -40°C to 70°C with derating.
Features include adjustable output, PFC, PMBus™, remote sense, and universal input.
It complies with standard numbers 60601-1, 60950-1, and 62368-1.
