| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Current - Output | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

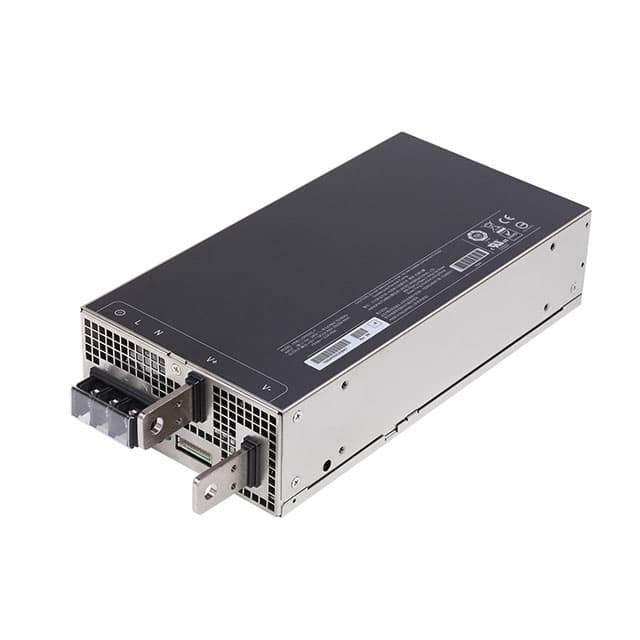

The Artesyn Embedded Power LCM1500W-T is a 1500 watt AC-DC front end converter delivering a single regulated 48V output at 33 amps. With a typical full-load efficiency of 91%, this unit reduces power loss and thermal management requirements in embedded systems.
It accepts a universal input voltage range of 90 to 264 VAC at 47 to 440 Hz and includes active power factor correction (PFC) meeting EN61000-3-2 harmonic standards. The converter features an I²C interface for monitoring and control, remote on/off, remote sense, load sharing capability, and an adjustable output voltage of ±10%.
Housed in a chassis-mount package with dimensions 254.0mm x 132.0mm x 61.7mm (10.00" x 5.20" x 2.43"), the unit operates over -40°C to 70°C with derating. It holds safety approvals including UL/cUL, TUV, CE, CCC, CB, and BSMI for both ITE (62368-1) and medical (60601-1) applications. The internal variable-speed fans extend system life by matching cooling to load.
The output voltage is 48 VDC with a maximum current of 33 A, providing a total power of 1500 W.
The universal input voltage range is 90 to 264 VAC.
The operating temperature range is -40°C to 70°C with derating.
It is approved to UL/cUL (ITE and Medical), TUV, CE, CCC, CB, and BSMI standards.
Yes, the datasheet confirms RoHS3 compliance.
It is designed for chassis mount installation.
