| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

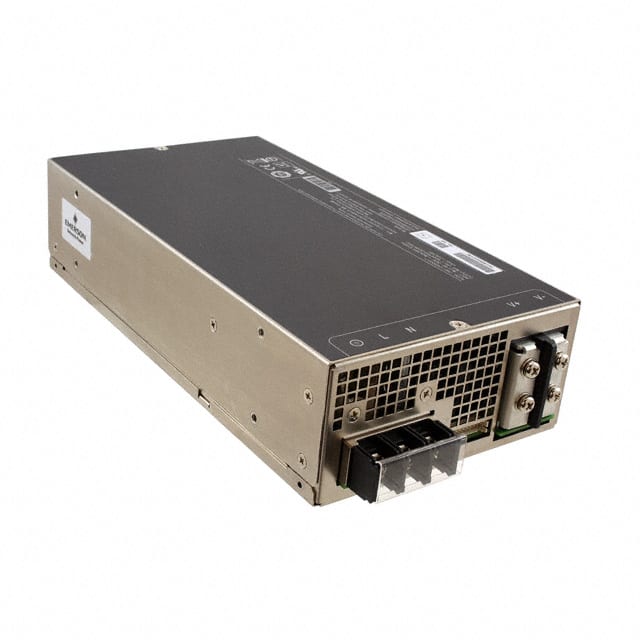

The Artesyn Embedded Power LCM1500Q-T-B is a high-power AC-DC front-end converter delivering up to 1500W. It is designed for demanding industrial and medical applications, offering a single output with a nominal voltage of 24VDC and a current rating of 67A. The unit accepts a wide input voltage range of 90 to 264 VAC across a frequency range of 47 to 440 Hz.
Key electrical specifications include a typical efficiency of 89% at full load and 230 VAC, with a maximum input current of 18A at 100 VAC. It provides 14ms of hold-up time at full load and features robust isolation voltages: 2087 VAC (PRI-Chassis), 4000 VAC (PRI-SEC), and 500 VDC (SEC-Chassis).
This converter operates within an environmental range of -40°C to 70°C with derating. Its mechanical dimensions are 254.0mm x 132.0mm x 61.7mm, and it is designed for chassis mounting. The LCM1500Q-T-B includes features such as adjustable output, I²C™ interface, load sharing, PFC, remote on/off, remote sense, and universal input, making it a versatile solution for various embedded power requirements.
The LCM1500Q-T-B provides a total power of 1500W.
The LCM1500Q-T-B has a single output.
The typical efficiency is 89% at full load and 230 VAC nominal input.
The operating input voltage range is 90 to 264 VAC.
The operating temperature range is -40°C to 70°C with derating.
The dimensions are 254.0mm in length, 132.0mm in width, and 61.7mm in height.
Approval agencies include BSMI, CB, CCC, CE, cURus, and TUV.
