| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

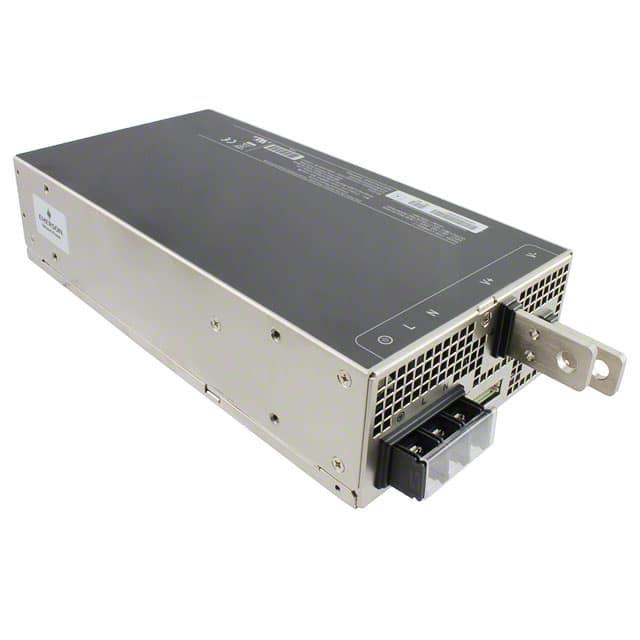

The Artesyn Embedded Power LCM1500L-T-4 is a 1500W bulk front-end AC/DC converter. It provides a single 12V DC output and features a wide input voltage range of 90 to 264 VAC.
Key electrical specifications include a typical efficiency of 91%, a maximum input current of 18A RMS, and a hold-up time of 14ms. The converter offers various features such as adjustable output, I²C™ interface, load sharing, PFC, PMBus™, remote on/off, remote sense, standby output, and universal input.
Designed for industrial and medical applications, the LCM1500L-T-4 has a chassis mount type and operates within a temperature range of -40°C to 70°C with derating. It meets EMI Class A standards and carries multiple safety approvals including UL/cUL, TUV, CE, BSMI, and CB.
Dimensions are 254.0mm x 132.0mm x 61.7mm. The unit also includes isolation voltages of 2087 VAC (PRI-Chassis), 4000 VAC (PRI-SEC), and 500 VDC (SEC-Chassis).
The main output voltage is 12 VDC. An optional 5 VDC standby output is also available.
Chassis mount.
-40°C to 70°C with derating.
89% typical at full load and 230 VAC nominal.
UL/cUL for ITE (UL/CSA62368-1) and Medical (ANSI/AAMI ES60601-1), TUV-SuD ITE and Medical, CE LVD, BSMI, and CB report.
133 A at the main output.
90 to 264 VAC.
