| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

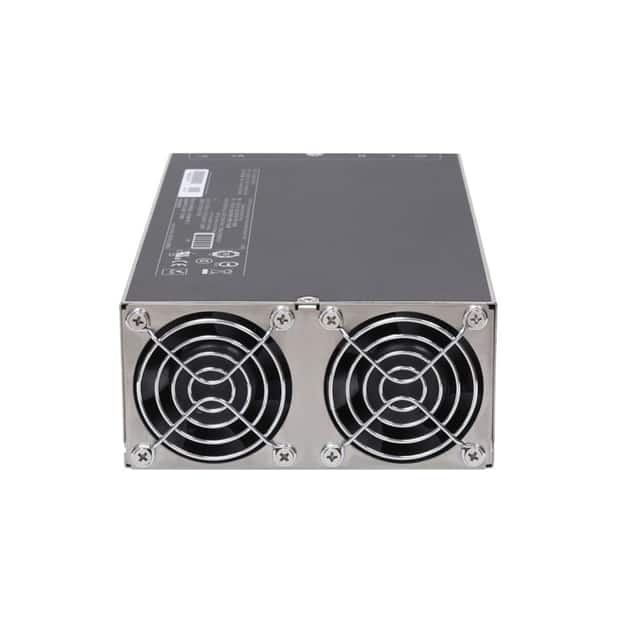

The LCM1000Q-T-8 is a front end AC/DC converter from Artesyn Embedded Power delivering 1000W of continuous power with a single 24V output at 41.7A. It features a typical efficiency of 90% and provides 4kV input-to-output isolation. The unit supports universal AC input with DC input capability and includes power factor correction (PFC), remote sense, a standby output, and adjustable output voltage.
Designed for chassis mount installation, the converter measures 254.0mm x 132.0mm x 61.7mm and operates over a temperature range of -40°C to 70°C with derating. It is approved for both ITE (commercial) and medical applications, holding certifications from CB, CCC, CE, cUL, TUV, and UL. Compliance with standards 60601-1, 60950-1, and 62368-1 is indicated.
The converter's features such as PFC and remote sense make it suitable for front-end power architectures in medical and industrial systems. The chassis mount form factor allows for easy integration into larger equipment enclosures.
-40°C to 70°C (with derating).
Chassis mount.
90%.
4 kV.
1 output.
CB, CCC, CE, cUL, TUV, UL.
ITE (Commercial) and medical.
