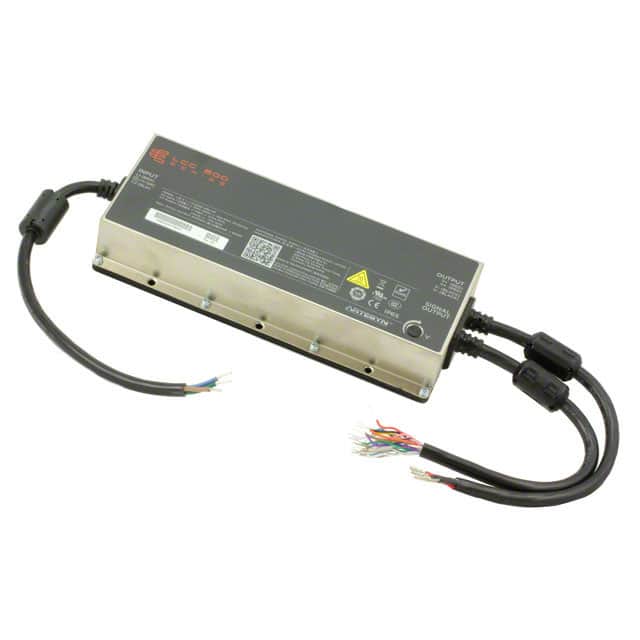

The Artesyn Embedded Power LCC600 series, including the LCC600-28U-4P model, provides fully enclosed, conduction-cooled AC-DC power conversion. Rated at 600 watts, this series offers main output voltages of 12V, 28V, 36V, or 48V, along with a 5Vdc standby output.
The LCC600-28U-4P features a 28V main output and is capable of delivering full power across a wide operating temperature range from -40°C to 85°C baseplate. Key design features include adjustable output, remote output On/Off control, AC_OK/DC_OK signals, active current sharing, and I²C/PMBus communication.
Designed for flexibility, this power supply meets stringent safety standards including UL, CSA, TÜV, and CB Scheme, making it suitable for ITE (Commercial) and Medical applications, including BF-type applications. It also incorporates active power factor correction and meets EMI Class B standards.
Mounting is via chassis, and the enclosed type ensures protection. The unit supports universal input voltage ranges and includes features like remote sense and standby output for enhanced system integration.
90-264 Vac for the U suffix variant.
28 VDC.
-40°C to 85°C baseplate.
Enclosed chassis mount.
93.3% typical at 230 Vac, 100% load.
UL/CSA 62368-1, ANSI ES60601-1, TÜV, CB, CE, UKCA, China CCC.
Yes, I²C and PMBus.
