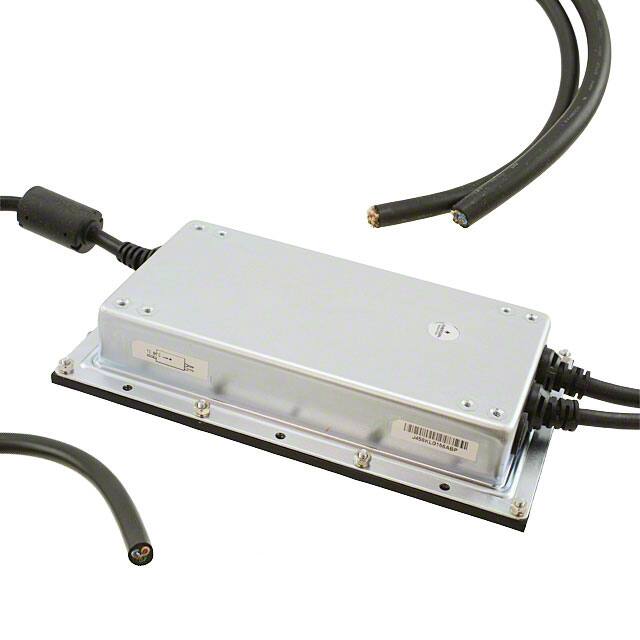

The Artesyn Embedded Technologies LCC250-48U-7PE is a 250-watt enclosed AC-DC power supply delivering a regulated 48Vdc output. Designed for demanding applications, it offers full power at elevated temperatures and features IP64 protection against dust and water ingress.
This power supply operates from a wide input voltage range of 90 to 264 VAC and boasts high efficiency, typically up to 91.5% at 230 VAC. Key electrical specifications include a maximum output current of 5.2A and a total output regulation range of ±2%. It supports features such as differential remote sense, adjustable output voltage and current, and user-selectable output On/Off logic.
The LCC250-48U-7PE is suitable for both indoor and outdoor applications, including telecom installations, outdoor signage, control consoles, and medical devices. Its fanless design minimizes dust and noise, making it ideal for sensitive environments. The unit meets various safety and compliance standards, including UL, CSA, TÜV, CB Scheme, CE Mark, and UKCA Mark.
With a chassis mount type and dimensions of 177.8mm x 101.4mm x 37.6mm, this power supply is designed for integration into various equipment. Its wide operating temperature range of -40°C to 85°C (with derating) ensures reliable performance in challenging conditions.
The LCC250-48U-7PE provides a nominal 48 VDC output.
The maximum output current for the LCC250-48U-7PE is 5.2 A.
The LCC250-48U-7PE has a total power output of 250W.
The operating temperature range is -40°C to 85°C (With Derating).
The dimensions are 177.8mm (Length) x 101.4mm (Width) x 37.6mm (Height).
It has UL + CSA 62368-1 2nd Ed. ANSI ES60601-1 3rd Ed, TÜV 62368-1 2nd Ed. 60601-1 3rd Ed. 61347-1; 2-13, CB Scheme IEC 62368-1 IEC 60950-1 2nd Ed IEC 61347-1; 2-13 IEC 60601-1, China CCC, CE Mark, and UKCA Mark.
The LCC250-48U-7PE is IP64 rated.
