| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

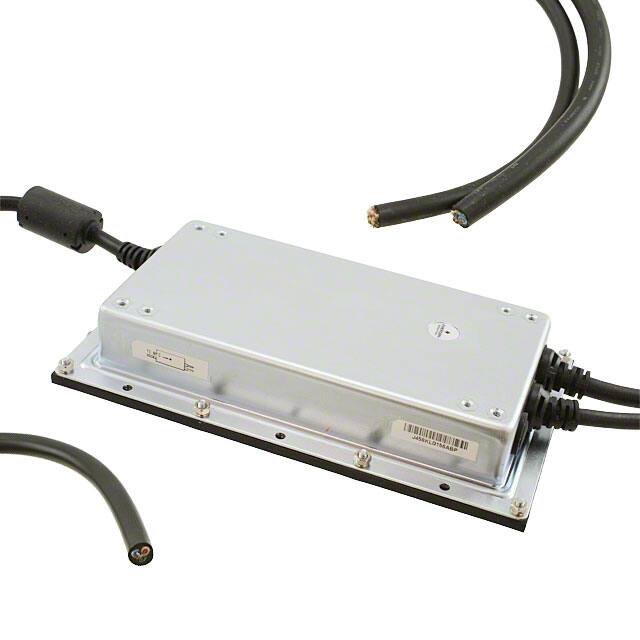

The Artesyn Embedded Power LCC250 AC-DC power supply series, including the LCC250-24U-7PE model, delivers 250 Watts of total power. This enclosed, chassis-mount converter operates with a wide input voltage range of 90 to 264 VAC or 127 to 300 VDC, featuring a nominal output voltage of 24 VDC at 10.4 A.
Key electrical specifications include a typical efficiency of 91% at 230 VAC and full load, and a power factor greater than 0.92. The series supports adjustable output voltage and current, differential remote sense, and remote On/Off control with user-selectable logic. It is designed for high reliability, offering a wide operating temperature range from -40°C to 85°C with derating.
The LCC250 series boasts an IP64 rating, providing protection against dust and water ingress, making it suitable for outdoor signage and telecom installations. It also meets EMI Class B standards and includes EN61000 Immunity and MIL-STD-461E compliance.
Safety certifications include UL, CSA, TUV, and CB Scheme, along with CE and UKCA marks. The unit is designed for conduction-cooled or convection cooling and is ideal for applications in ITE (Commercial) and Medical sectors, as well as indoor signage and control consoles where minimal dust and noise are desired.
The LCC250-24U-7PE has a nominal output voltage of 24 VDC.
The maximum output current for the 24V output is 10.4 A.
The total power rating is 250 Watts.
The operating temperature range is -40°C to 85°C with derating.
The typical efficiency is 91% at 230 Vac and 100% load for the 24V output.
Yes, it is IP64 rated.
Applications include ITE (Commercial), Medical, outdoor signage, telecom installations, control consoles, and indoor signage.
