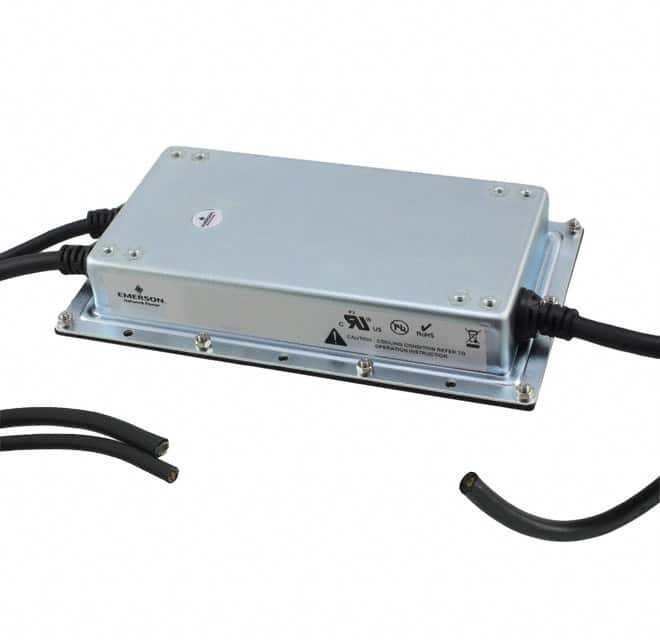

The Artesyn Embedded Power LCC250-24U-7P is a 250-watt AC-DC power supply designed for reliable operation in various environments. This enclosed, chassis mount unit delivers full power at elevated temperatures and features IP64 protection against dust and water ingress.
Key electrical specifications include a wide input voltage range of 90 to 264 VAC, a typical efficiency of 91% at 230 VAC, and a 24VDC output at 10.4A. The power supply supports adjustable output voltage and current, differential remote sense, and remote On/Off control with user-selectable logic.
Designed for applications such as ITE (Commercial) and medical equipment, the LCC250 series is suitable for both indoor and outdoor installations. Its conduction-cooled or convection cooling capability, combined with the absence of cooling fans, minimizes dust and noise, making it ideal for control consoles, indoor signage, and telecom installations like antenna and base station equipment.
Compliance includes CE Mark, UKCA Mark, and adherence to various safety standards like UL, CSA, TUV, and CB Scheme. It also meets EMI Class B and EN61000 Immunity standards.
The output voltage is 24 VDC and the output current is 10.4 A, providing 250 W total power.
The input voltage range is 90 to 264 VAC (operating) or 127 to 300 VDC.
The operating temperature range is -40°C to +85°C with derating.
Yes, it is IP64 rated for protection against dust and water ingress.
It is certified to UL/CSA 62368-1, ANSI ES60601-1, TÜV 62368-1/60601-1, CB scheme IEC 62368-1/60950-1/61347-1/60601-1, and China CCC. It also carries CE and UKCA marks.
Yes, it supports remote on/off with user-selectable positive or negative logic via CN2. Factory default is positive logic.
Typical efficiency is 91% at 230 VAC and 100% load for the 24 V output model.
