| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

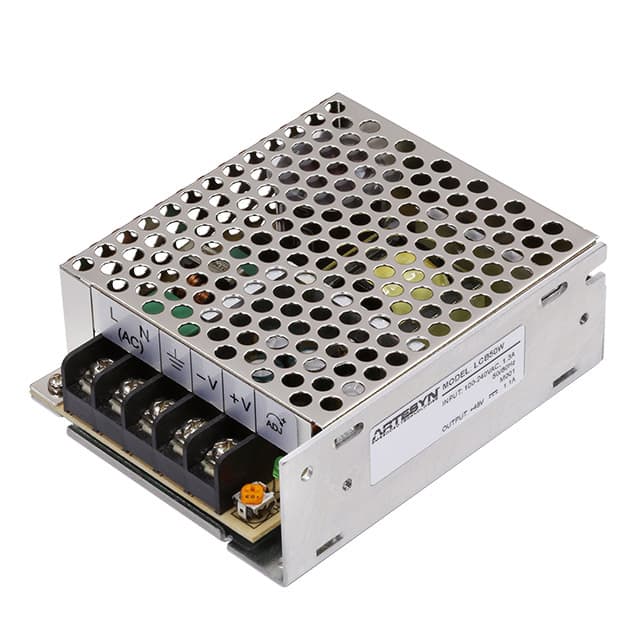

The Artesyn Embedded Power LCB50D is a 50 Watt single output AC DC power supply designed for versatile applications. It provides a total power of 50W and supports a wide range of output voltages from 3.3V to 48V, with an output tolerance of ±1% to 3% across a 90-264 Vac input range.
This power supply boasts high efficiency, reaching up to 90% at 230 Vac nominal load. It operates with a wide input voltage range of 88-264 Vac and 50/60 Hz nominal frequency. Key features include low no-load power consumption of 0.5W, a compact form factor of 3.9” x 3.2” x 1.4”, and 10% output voltage adjustability.
Designed for reliability, the LCB50D operates within an ambient temperature range of -25 °C to +70 °C with linear derating from 50 °C. It includes protections such as short circuit, overload (>110% rated output power), and overvoltage (115% to 150% of main output). The unit also features a Power ON LED indicator and meets EMI Class B standards.
Safety certifications include UL, cUL 60950-1, TUV 60950-1, and CE compliance. The LCB50D is suitable for various industrial and commercial applications requiring a dependable and efficient AC to DC power conversion solution.
The LCB50D provides a total power of 50 W.
The LCB50D offers output voltages ranging from 3.3V to 48V.
The LCB50D has a typical efficiency of 90% at 230 Vac nominal load.
The operating temperature range is -25 °C to +70 °C, with linear derating to 50% from 50 °C to 70 °C.
The LCB50D is certified to UL, cUL 60950-1, TUV 60950-1, and CE standards.
The dimensions of the LCB50D are 3.9 inches by 3.2 inches by 1.4 inches.
Yes, the LCB50D has overload protection (OCP) greater than 110% of the rated output power.
