| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
123 pcs
|
123 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Conflict Minerals | |
| Current | |
| EMI Class | |
| Efficiency | |
| Features | |
| Harmonics | |
| Height | |
| Hold Up Time | |
| Humidity | |
| Input Frequency | |
| Input Voltage | |
| Inrush Current | |
| Isolation | |
| Leakage Current | |
| Length | |
| MTBF | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Noise (PARD) | |
| Output Voltage | |
| Output voltage adjust | |
| Overload Protection (OCP) | |
| Overvoltage Protection (OVP) | |
| Power (Watts) | |
| Rated Load | |
| Safety | |
| Short circuit protection | |
| Storage Temperature | |
| Total Power | |
| Type | |
| Vibration | |
| Voltage | |
| Warranty | |
| Width |

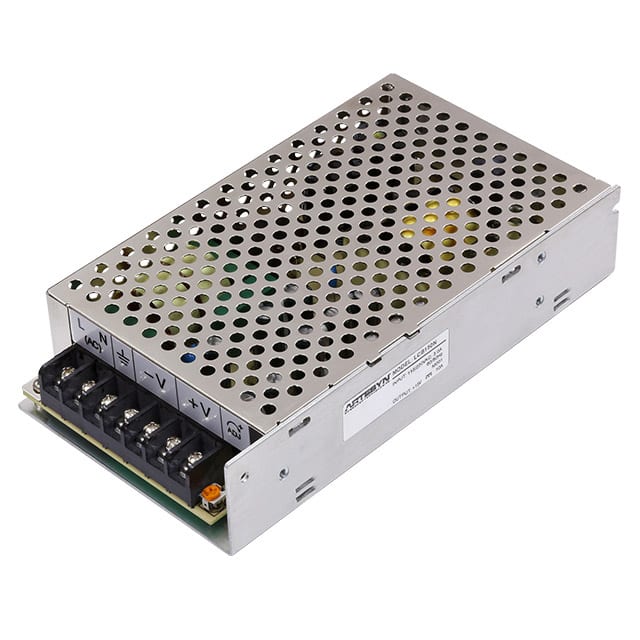

The Artesyn Embedded Power LCB150N is a 150W AC/DC power supply designed for various applications. It provides a single output of 15V with a maximum current of 10A, delivering a total power of 150W. The unit supports universal input voltage, accepting ranges of 88-132 Vac and 176-264 Vac, with an input frequency of 47-63 Hz.
Key electrical specifications include an efficiency of 89% and a no-load power consumption of 1.5W. The converter offers adjustable output voltage within ±10% and features protections such as short circuit, overload (>105%), and overvoltage (115%-150%). It also provides a hold-up time of over 25ms and has an inrush current of 50A at cold start.
Designed for environmental resilience, the LCB150N operates within a temperature range of -25°C to 70°C with derating. Storage temperatures can range from -40°C to 85°C, with humidity tolerance from 20% to 90% non-condensing. The unit has undergone vibration testing up to 5G.
Mechanically, this power supply measures 179.0mm in length, 98.0mm in width, and 38.0mm in height. It is designed for chassis mounting and comes in an enclosed type. Compliance certifications include CE, UL, cUL 60950-1, and TUV 60950-1, with EMI Class B and EN61000-3-2 Class A harmonics compliance.
The operating temperature range is -25°C to 70°C, with derating applied from 50°C to 70°C.
The LCB150N has a single output voltage of 15V.
The total power output is 150W.
The LCB150N supports universal input voltage ranges of 88 - 132 Vac and 176 - 264 Vac.
The efficiency is 89% typical at full load and 230 Vac nominal input.
The LCB150N is designed for chassis mounting.
The LCB150N is safety certified to UL, cUL 60950-1, TUV 60950-1, and CE.
