| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Mounting Type | |
| Number of I | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage Supply |
The Lattice Semiconductor LC5256MV-75F256I is a Complex Programmable Logic Device (CPLD) from the ispXPLD 5000MX family. This device offers 256 macrocells and 141 I/O pins, making it suitable for various digital logic applications.
Key electrical specifications include a maximum propagation delay of 7.5 ns and a supply voltage range of 3V to 3.6V. The operating temperature range is -40°C to 105°C (TJ), ensuring reliable performance in diverse environments. The device is designed for In System Programmable (ISP) functionality.
Packaged in a 256-BGA, specifically a 256-FPBGA (17x17) format, this CPLD is designed for surface mount applications. Its robust specifications and reliable manufacturer support make it a viable option for designs requiring programmable logic solutions.
The maximum propagation delay for the LC5256MV-75F256I is 7.5 ns.
The LC5256MV-75F256I has 256 macrocells.
This CPLD operates within a voltage supply range of 3V to 3.6V.
The operating temperature range for the LC5256MV-75F256I is -40°C to 105°C (TJ).

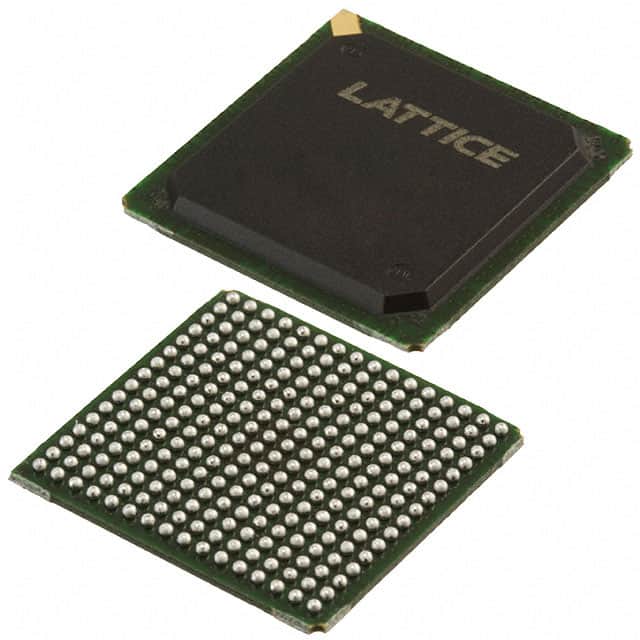

The LC5256MV-75F256I is supplied in a 256-FPBGA (17x17) package for surface mounting.
