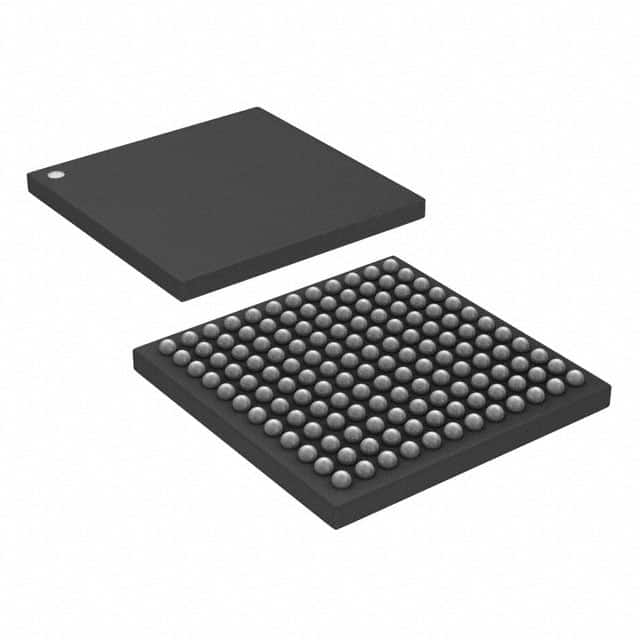

The Lattice Semiconductor LC4064ZE-5MN144C is an In-System Programmable CPLD belonging to the ispMACH 4000ZE family. This device features 64 macrocells and a maximum propagation delay of 5.8 ns, making it suitable for various logic implementation tasks.
Designed for ultra-low power consumption, the ispMACH 4000ZE family operates with a core voltage of 1.8V and can function down to 1.6V. The LC4064ZE-5MN144C supports a supply voltage range of 1.7V to 1.9V. It offers 64 I/O pins and is housed in a 144-CSBGA (7x7mm) package, suitable for surface mounting.
Key features include its In-System Programmable capability, enabling easy design updates and system integration. The device operates within a commercial temperature range of 0°C to 90°C (junction temperature). Its low power characteristics make it a good choice for power-sensitive consumer applications.
The maximum operating frequency is 260 MHz.
The maximum propagation delay is 5.8 ns.
The device operates between 1.7V and 1.9V.
The operating temperature range is 0°C to 90°C (junction temperature).
It has 64 macrocells.
It is supplied in a 144-CSBGA (7x7mm) package.
