| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Mounting Type | |
| Number of I | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Voltage Supply |

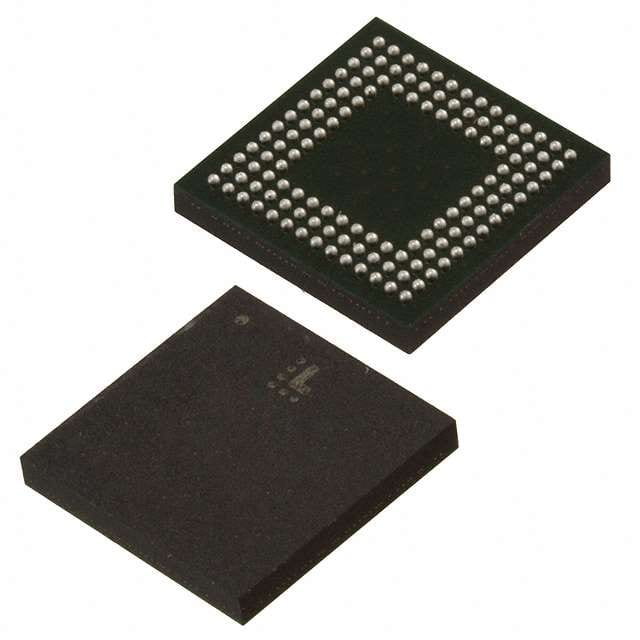

The Lattice Semiconductor LC4064ZC-75MN132C is an In-System Programmable (ISP) CPLD from the ispMACH 4000Z family. It offers 64 user-programmable macrocells and 64 I/O pins, making it suitable for various digital logic applications.
This device boasts a fast propagation delay of 7.5 ns, ensuring high-speed performance. It operates within a supply voltage range of 1.7V to 1.9V. The CPLD is designed for ease of integration into embedded systems requiring flexible logic configurations.
Packaged in a 132-CSBGA (8x8) surface-mount configuration, the LC4064ZC-75MN132C is designed for efficient board space utilization. It operates within a junction temperature range of 0°C to 90°C.
Key specifications include 64 macrocells, 64 I/O pins, and a 7.5 ns propagation delay. The device supports in-system programming, allowing for design updates without removing the component from the circuit board.
The maximum propagation delay (tpd) for the LC4064ZC-75MN132C is 7.5 ns.
The LC4064ZC-75MN132C features 64 macrocells.
The supply voltage for the LC4064ZC-75MN132C ranges from 1.7V to 1.9V.
The operating junction temperature range for the LC4064ZC-75MN132C is 0°C to 90°C.
The LC4064ZC-75MN132C is supplied in a 132-CSBGA (8x8) surface-mount package.
