| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,052 pcs
|
1052 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 16/ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Mounting Type | |
| Number of I | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Voltage Supply |
The Lattice Semiconductor LC4032ZE-7MN64I is an In-System Programmable (ISP) Complex Programmable Logic Device (CPLD) from the ispMACH 4000ZE family. This device offers 32 macrocells and a maximum propagation delay of 7.5 ns. It operates with a core supply voltage between 1.7V and 1.9V, making it suitable for low-power applications.

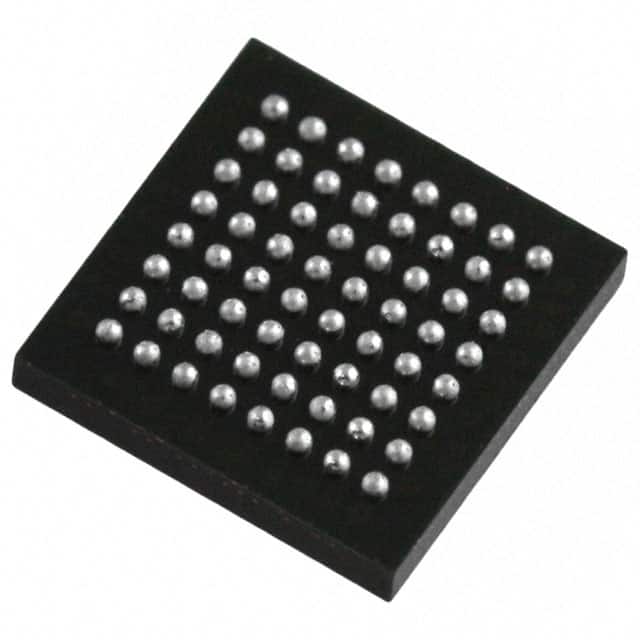

The CPLD supports a wide range of I/O voltages, including 3.3V, 2.5V, 1.8V, and 1.5V LVCMOS, and features 5V tolerant I/O for compatibility with various interfaces. The device is designed for ease of use with features like flexible macrocells and individual I/O controls. It is housed in a compact 64-CSBGA (5x5mm) package, suitable for surface mounting.
Key electrical characteristics include a maximum operating frequency of 260MHz and a typical standby current as low as 10µA. The operating temperature range is -40°C to 105°C (TJ). This CPLD is designed for power-sensitive consumer applications and offers features like hot-socketing support and programmable output slew rate.
The maximum operating frequency is 260 MHz.
The maximum propagation delay is 7.5 ns.
The device operates with a supply voltage between 1.7V and 1.9V.
It is supplied in a 64-CSBGA (5x5mm) package.
The operating temperature range is -40°C to 105°C (TJ).
