LAMXO640C-3FTN256E The Lattice Semiconductor LAMXO640C-3FTN256E is a CPLD with 320 macrocells and 159 I/O pins. It operates with a supply voltage between 1.71V and 3.465V.
Mfr Part #:

LAMXO640C-3FTN256E

Available from 1 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice Semiconductor LAMXO640C-3FTN256E is a CPLD with 320 macrocells and 159 I/O pins. It operates with a supply voltage between 1.71V and 3.465V.
✓ Total Stock: 350 pcs

LAMXO640C-3FTN256E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
350 pcs
On Request
350 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LAMXO640C-3FTN256E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Lead Spacing
Mounting Type
Number of I
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Voltage Supply
View Similar Products (0)

LAMXO640C-3FTN256E Description

Short technical summary and product information.

The Lattice Semiconductor LAMXO640C-3FTN256E is a Complex Programmable Logic Device (CPLD) designed for various embedded applications. It features 320 macrocells and 159 input/output (I/O) pins, offering significant logic density.



This CPLD operates within a voltage supply range of 1.71V to 3.465V and has a maximum propagation delay of 4.9 ns. The device is designed for in-system programmability, allowing for flexible configuration and updates.

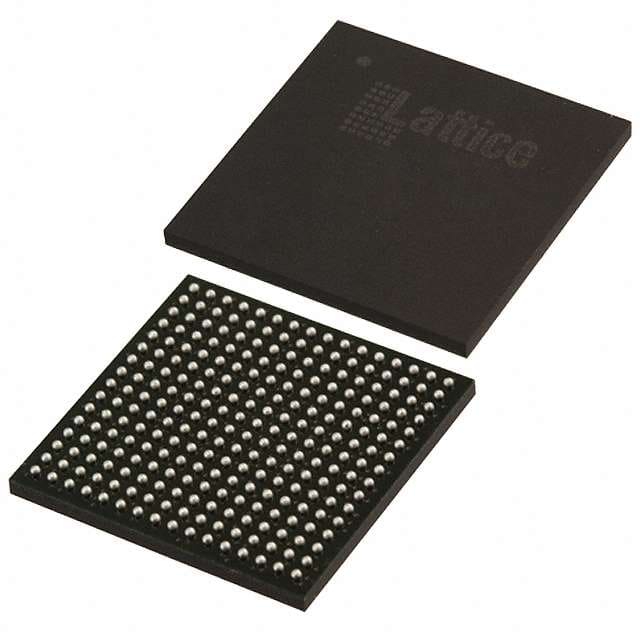

It is housed in a 256-FTBGA (17x17) package and supports surface mount installation. The operating temperature range is from -40°C to 125°C (TA), making it suitable for demanding environments.

LAMXO640C-3FTN256E Quick Information

Product Type: CPLD
Series: LA-MachXO
Canonical Name: LAMXO640C-3FTN256E
Subcategory: CPLD

LAMXO640C-3FTN256E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LAMXO640C-3FTN256E Features

  • 320 macrocells for logic implementation.
  • 159 I/O pins for connectivity.
  • 4.9 ns maximum propagation delay.
  • 1.71V to 3.465V operating voltage.
  • Surface mount 256-FTBGA package.

LAMXO640C-3FTN256E Applications

  • Glue logic implementation.
  • Bus bridging and interfacing.
  • Power-up control circuits.
  • Control logic applications.

LAMXO640C-3FTN256E FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the LAMXO640C-3FTN256E?

The operating voltage for the LAMXO640C-3FTN256E is between 1.71V and 3.465V.

What package type is the LAMXO640C-3FTN256E supplied in?

The LAMXO640C-3FTN256E is supplied in a 256-FTBGA (17x17) package.

What is the operating temperature range for this CPLD?

The operating temperature range for the LAMXO640C-3FTN256E is -40°C to 125°C (TA).

What is the maximum propagation delay of the LAMXO640C-3FTN256E?

The maximum propagation delay (tpd(1) Max) for the LAMXO640C-3FTN256E is 4.9 ns.
