| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

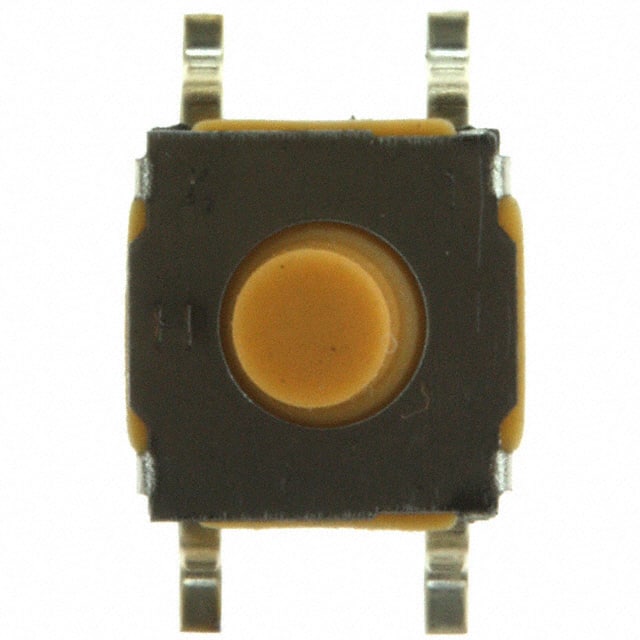

This C&K Components KSC441G ST1 LFS is a tactile switch designed for various applications. It operates with a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration.
The switch is rated for 0.05A at 32VDC, making it suitable for low-power switching applications. It features a surface mount termination style with gull wing leads, ensuring secure and reliable connections on printed circuit boards.
With an operating temperature range of -40°C to 85°C and an Ingress Protection rating of IP67, this tactile switch offers durability and protection against dust and water. The actuator height is 5.20mm, and the overall dimensions are 6.20mm x 6.20mm. It is non-illuminated and has a standard actuator type.
Additional features include sound tunability and a specific operating force of 340gf. The MSL is rated at 1, indicating unlimited moisture sensitivity level.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The contact rating is 0.05A at 32VDC.
The ingress protection rating is IP67, meaning it is dust-tight and waterproof.
This switch is designed for surface mount installation.
