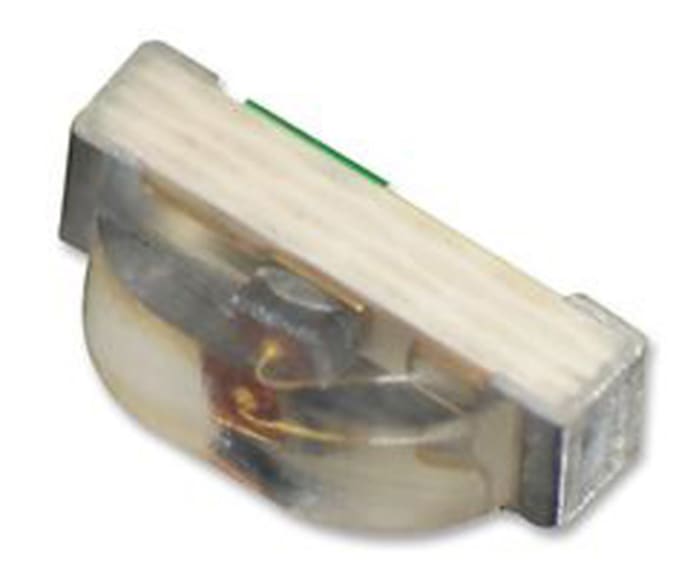

KPA-2106SURCK The Kingbright KPA-2106SURCK is a red LED with a typical forward voltage of 2.5V and a maximum forward current of 185mA. It is supplied in a 2106 surface mount package on tape and reel.
Mfr Part #:

KPA-2106SURCK

Available from 2 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright KPA-2106SURCK is a red LED with a typical forward voltage of 2.5V and a maximum forward current of 185mA. It is supplied in a 2106 surface mount package on tape and reel.
✓ Total Stock: 1,722 pcs
$ Price Range: $0.99

KPA-2106SURCK Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
861 pcs
On Request
861 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
861 pcs
On Request
861 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KPA-2106SURCK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
SVHC Present
Viewing Angle
View Similar Products (0)

KPA-2106SURCK Description

Short technical summary and product information.

This Kingbright KPA-2106SURCK is a red light-emitting diode (LED) designed for surface mount applications. It features a typical forward voltage of 2.5V and can handle a maximum forward current of 185mA. The LED offers a wide viewing angle of 120 degrees and a luminosity of 220 mcd.



The component comes in a 2106 package and is supplied on tape and reel, making it suitable for automated assembly processes. Its clear lens and red color make it ideal for indicator and backlighting applications.



Key electrical specifications include a maximum power dissipation of 75mW and a dominant wavelength of 630nm. The LED is RoHS3 compliant and has an MSL rating of 1.

KPA-2106SURCK Quick Information

Product Type: LED
Series: KPA-2106
Canonical Name: Kingbright KPA-2106SURCK Red LED
Subcategory: LED Emitters

KPA-2106SURCK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KPA-2106SURCK Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

KPA-2106SURCK Features

  • Red LED with 120 degree viewing angle.
  • Surface mount 2106 package.
  • Tape and reel packaging for automation.
  • 2.5V typical forward voltage.
  • 185mA maximum forward current.

KPA-2106SURCK Applications

  • Ideal for status indicator lights on PCBs.
  • Use in backlighting for small displays.
  • Suitable for decorative lighting applications.
  • Employed in consumer electronics pilot lights.

KPA-2106SURCK FAQs

7 frequently asked questions generated from this part’s specifications.
What is the dominant wavelength of the KPA-2106SURCK?

The typical dominant wavelength is 630nm (red).

What is the typical forward voltage?

The typical forward voltage is 2.5V.

What is the maximum forward current?

The maximum forward current is 185mA.

What is the luminous intensity?

The typical luminous intensity is 220mcd.

What is the viewing angle?

The typical viewing angle is 120°.

What package type is this LED?

It is a 2106 surface mount package.

What is the maximum power dissipation?

The maximum power dissipation is 75mW.
