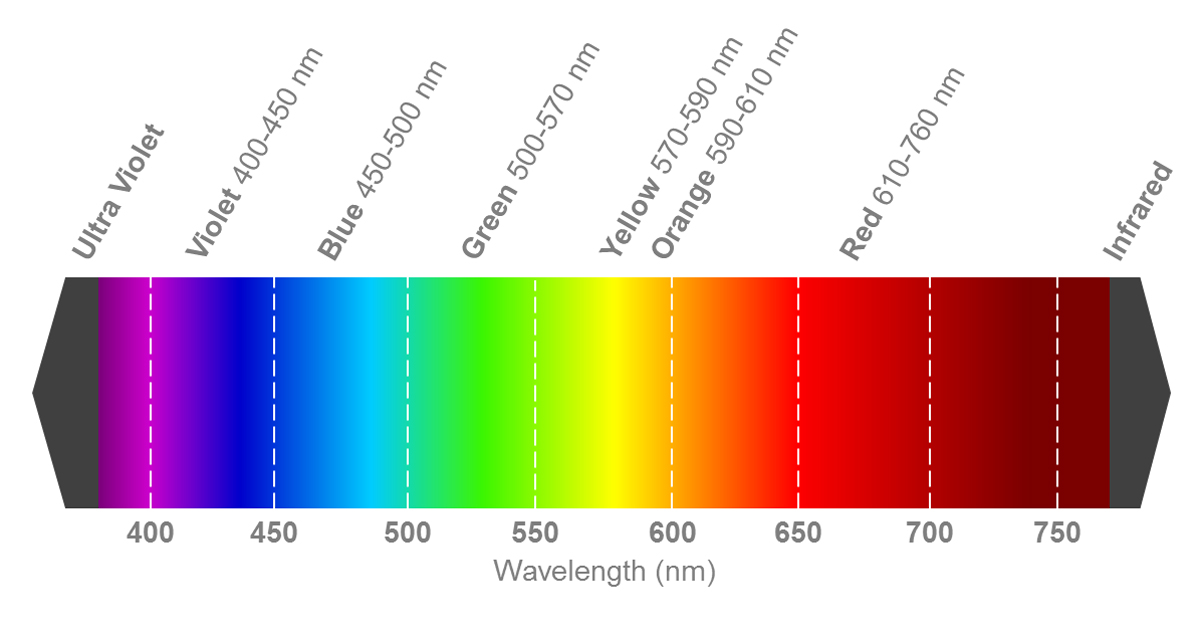

KA-3022SURSK-4.5SF The Kingbright KA-3022SURSK-4.5SF is a red LED with a dominant wavelength of 630 nm. It features a PLCC 2 SMD package and a 120° viewing angle.
Mfr Part #:

KA-3022SURSK-4.5SF

Available from 1 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright KA-3022SURSK-4.5SF is a red LED with a dominant wavelength of 630 nm. It features a PLCC 2 SMD package and a 120° viewing angle.
✓ Total Stock: 260 pcs
$ Price Range: $0.07

KA-3022SURSK-4.5SF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
260 pcs
On Request
260 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KA-3022SURSK-4.5SF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Forward Current
Forward Voltage
Mounting Type
SVHC Present
Viewing Angle
View Similar Products (0)

KA-3022SURSK-4.5SF Description

Short technical summary and product information.

The Kingbright KA-3022SURSK-4.5SF is a discrete red LED designed for indication purposes. It operates with a forward voltage of 2.5V and a forward current of 30mA, producing a typical luminous intensity of 300 mcd. The dominant wavelength is 630 nm, providing a clear red light output.



This LED is housed in a PLCC 2 SMD package, suitable for surface mounting applications. Its dimensions are 3 x 2.2 x 1.5mm. The viewing angle is a wide 120°, ensuring visibility from various perspectives. This component is ideal for applications requiring a reliable red light source in a compact surface-mount form factor.

KA-3022SURSK-4.5SF Quick Information

Product Type: LED
Series: KA-3022SURSK-4.5SF
Canonical Name: Kingbright KA-3022SURSK-4.5SF Red LED
Subcategory: Discrete LED

KA-3022SURSK-4.5SF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KA-3022SURSK-4.5SF Estimated Pricing

Qty Low High
1+ $0.07 $0.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

KA-3022SURSK-4.5SF Features

  • Red LED with 630nm dominant wavelength.
  • PLCC 2 SMD package for surface mounting.
  • 120° wide viewing angle.
  • 300 mcd typical luminous intensity.
  • 3 x 2.2 x 1.5mm dimensions.

KA-3022SURSK-4.5SF Applications

  • Ideal for indicator light applications.
  • Suitable for panel and equipment signaling.
  • Used in consumer electronics devices.
  • Component for status indication modules.

KA-3022SURSK-4.5SF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the dominant wavelength of the Kingbright KA-3022SURSK-4.5SF LED?

The dominant wavelength is 630 nm.

What is the forward voltage for the KA-3022SURSK-4.5SF LED?

The forward voltage is 2.5 V at 30mA.

What is the luminous intensity of this Kingbright LED?

The typical luminous intensity is 300 mcd at 30mA.

What is the viewing angle of the KA-3022SURSK-4.5SF?

The viewing angle is 120 °.

What are the dimensions of the PLCC 2 package?

The dimensions are 3 x 2.2 x 1.5mm.

What is the RoHS status of the KA-3022SURSK-4.5SF?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this LED?

The Moisture Sensitivity Level is 1 Unlimited.
