| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,480 pcs
|
3480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Max | |
| Isolation Voltage | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Size / Dimension | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

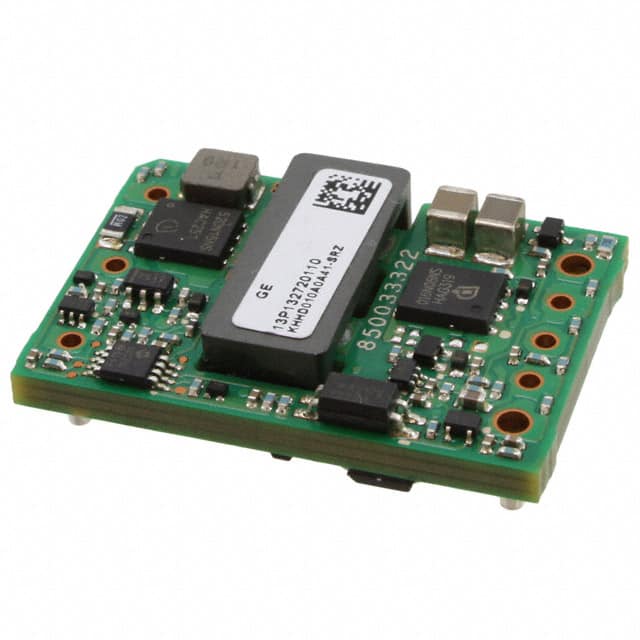

The KHHD010A0A41Z is an isolated DC-DC converter module from the Hammerhead series by ABB Power Electronics. It operates over an ultra-wide input voltage range of 18V to 75V and delivers a single regulated 5V output at up to 10A, providing 50W of output power. The module achieves a typical efficiency of 91% at full load with a 48V input.
This converter features full input-to-output isolation of 2250 Vdc and includes comprehensive protection features such as remote on/off control, output over-current protection (OCP), over-temperature protection (OTP), over-voltage protection (OVP), and under-voltage lockout (UVLO). The control interface uses enable logic with active low signaling.
The module is housed in a compact 8-DIP through hole package measuring 33.0mm x 22.8mm x 9.5mm. It is designed for a wide operating temperature range of -40°C to 85°C, making it suitable for demanding industrial and networking environments. The part is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $35.05 | $35.05 |
| 5+ | $33.74 | $33.74 |
| 10+ | $33.20 | $33.20 |
| 25+ | $32.49 | $32.49 |
| 75+ | $31.65 | $31.65 |
| 150+ | $31.14 | $31.14 |
| 300+ | $30.63 | $30.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18V to 75V DC.
It provides a single 5V output at up to 10A, with a total power of 50W.
The typical efficiency is 91% at full load with a 48V input.
The operating temperature range is -40°C to 85°C.
It uses a through hole 8-DIP module package.
Yes, it is RoHS3 compliant per Directive 2011/65/EU and amended Directive 2015/863.
It includes remote on/off, over-current protection (OCP), over-temperature protection (OTP), over-voltage protection (OVP), and under-voltage lockout (UVLO).
