| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,259 pcs
|
1259 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Max | |
| Isolation Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

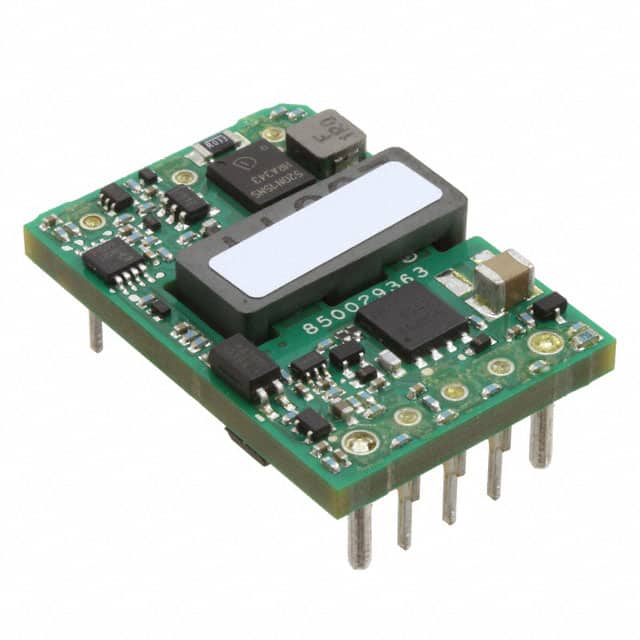

The KHHD006A0A41Z is an isolated DC-DC converter module from the Hammerhead series by ABB Power Electronics. It operates over an ultra-wide input voltage range of 18V to 75V and delivers a single regulated output of 5V at 6A, providing 30W of output power. The module achieves a typical efficiency of 90% at full load with a 48V input.
This converter features 2250Vdc input-to-output isolation and includes comprehensive protection: overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), short-circuit (SCP), and under-voltage lockout (UVLO). Remote on/off control with active-low enable is supported. The module is designed for commercial ITE (Information Technology Equipment) applications.
The KHHD006A0A41Z is housed in an 8-DIP 1/16 brick package with through-hole mounting. Its compact dimensions are 33.0mm x 22.9mm x 9.3mm. The operating temperature range is -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $31.93 | $31.93 |
| 5+ | $30.74 | $30.74 |
| 10+ | $30.24 | $30.24 |
| 25+ | $29.59 | $29.59 |
| 75+ | $28.83 | $28.83 |
| 150+ | $28.36 | $28.36 |
| 300+ | $27.90 | $27.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18V to 75V DC.
It provides a single 5V output at 6A, with a total power of 30W.
Typical efficiency is 90% at full load with a 48V input.
The operating temperature range is -40°C to 85°C.
It is an 8-DIP Module in a 1/16 brick form factor with through-hole mounting.
Yes, it is RoHS3 compliant.
It includes overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), short-circuit (SCP), and under-voltage lockout (UVLO) protection.
