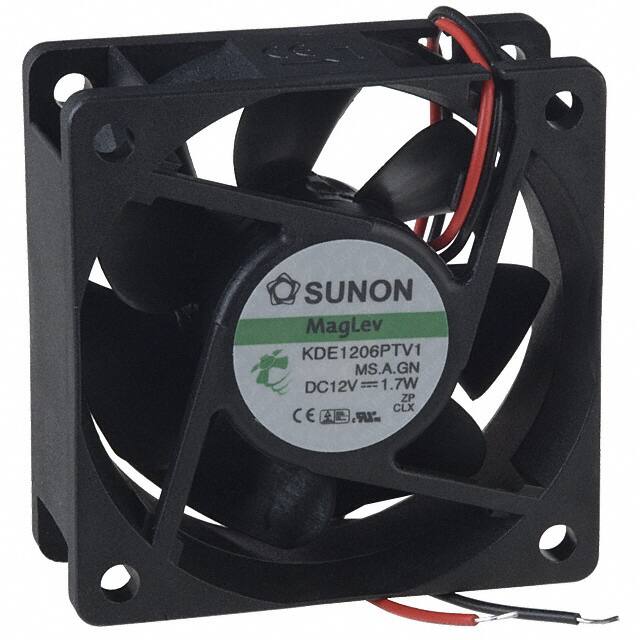

This SUNON DC brushless fan, model KDE1206PTV1.MS.A.GN, is designed for cooling applications requiring reliable axial airflow. It operates at a nominal voltage of 12VDC and features a robust Vapo-Bearing™ for extended operational life.
The fan has a square frame measuring 60mm in length and height, with a width of 25mm. It spins at 4500 RPM, providing an airflow of 23.5 CFM (0.658m³/min) and generating a static pressure of 0.210 in H2O (52.3 Pa). The noise level is rated at 33.5dB(A), and it consumes 1.7W of power.
Operating within a temperature range of -10°C to 70°C, this fan is suitable for various environmental conditions. It is terminated with 2 wire leads for easy integration into systems. The fan carries CE, CUR, TUV, and UL agency approvals, indicating compliance with safety standards.
This model is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1. Its dimensions and performance characteristics make it suitable for applications where efficient thermal management is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 12 VDC.
The fan dimensions are 60mm L x 60mm H with a width of 25mm.
The airflow rate is 23.5 CFM (0.658m³/min).
The noise level is 33.5dB(A).
The operating temperature range is -10°C to 70°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
