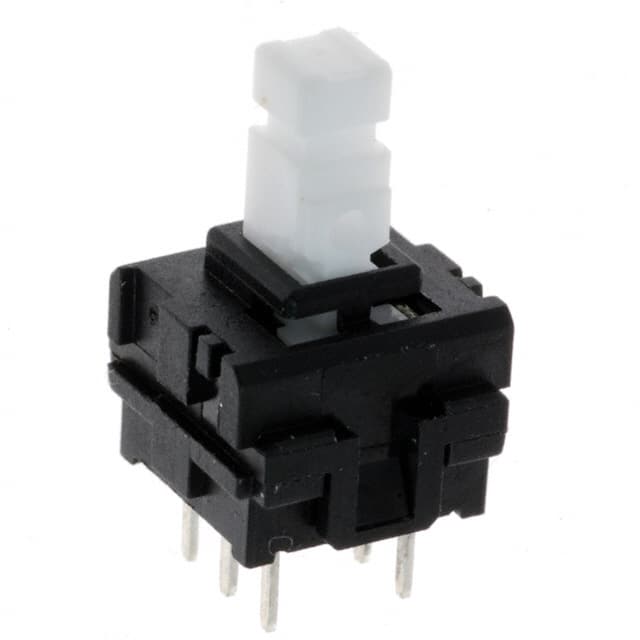

JN2UOANAGX The E-Switch JN2UOANAGX is a momentary pushbutton switch featuring a DPDT circuit. It is designed for through-hole mounting and has PC pin termination.
Mfr Part #:

JN2UOANAGX

Available from 1 distributors
Mfr Name: E-Switch
E-Switch
The E-Switch JN2UOANAGX is a momentary pushbutton switch featuring a DPDT circuit. It is designed for through-hole mounting and has PC pin termination.
✓ Total Stock: 50 pcs
$ Price Range: $0.75

JN2UOANAGX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JN2UOANAGX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Current Rating (Amps)
Failure Rate
Features
Housing Material
Mounting Style
Mounting Type
Operating Temperature
Switch Function
Termination Style
Type
Voltage Rating
View Similar Products (0)

JN2UOANAGX Description

Short technical summary and product information.

The E-Switch JN2UOANAGX is a pushbutton switch with a DPDT (Double Pole, Double Throw) contact configuration. It is rated for a maximum voltage of 30 VDC and a current of 100mA.



This switch features a momentary function (On-Mom) and is designed for through-hole mounting with PC pin termination. The operating temperature range is from -10°C to 60°C. The actuator type is a plunger designed for a cap, which is ordered separately.



The housing material is Polybutylene Terephthalate (Pbt), and the series is Jn2. The switch is unsealed and has no actuator marking. It is suitable for various electronic applications requiring a reliable momentary switching action.

JN2UOANAGX Quick Information

Product Type: Pushbutton Switch
Series: Jn2
Canonical Name: E-Switch JN2UOANAGX Pushbutton Switch
Subcategory: Pushbutton Switches

JN2UOANAGX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JN2UOANAGX Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

JN2UOANAGX Features

  • DPDT momentary pushbutton switch.
  • Rated for 30 VDC and 100 mA.
  • Through hole mounting with PC pins.
  • Operating temperature from -10°C to 60°C.
  • Plunger actuator requires separate cap.

JN2UOANAGX Applications

  • Ideal for general purpose switching.
  • Suitable for PCB integration.
  • Used in control panel applications.
  • Requires manual actuator cap.

JN2UOANAGX FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the JN2UOANAGX pushbutton switch?

The JN2UOANAGX pushbutton switch has a voltage rating of 30 VDC.

What is the current rating for the JN2UOANAGX switch?

The current rating for the JN2UOANAGX switch is 100 mA.

What type of circuit does the JN2UOANAGX pushbutton switch use?

The JN2UOANAGX pushbutton switch uses a DPDT circuit.

What is the operating temperature range for the JN2UOANAGX?

The operating temperature range for the JN2UOANAGX is -10°C to 60°C.

How is the JN2UOANAGX pushbutton switch mounted?

The JN2UOANAGX pushbutton switch is designed for through-hole mounting.

What is the termination style for the JN2UOANAGX switch?

The termination style for the JN2UOANAGX switch is PC Pin.
